GypWall Single Frame Enhanced - Q606A063SF (EN)

Name: GypWall Single Frame Enhanced - Q606A063SF (EN)
Brand: British Gypsum
SKU: axpBW8XGCFr9z2gNFPHWa5

Verified by manufacturer 5 days ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

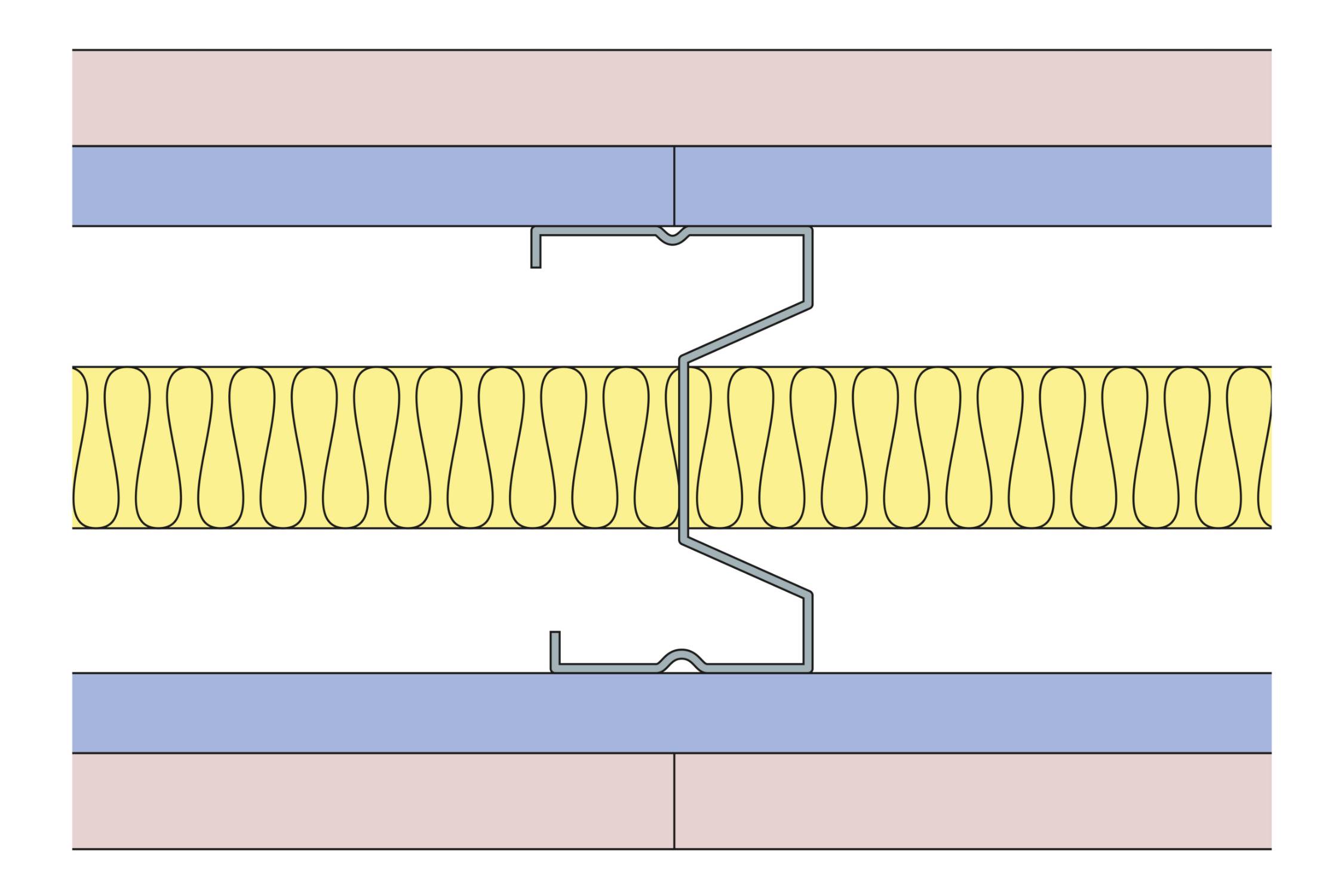

Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Gyproc DuraLine 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. 90 minute EN fire height claim. For heights up to 4700mm.

General information

Finish	- Manufacturer guidance Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	131 mm
Height	4700 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

Product range	Internal Partitions and Walls / GypWall Single Frame Enhanced

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. Head channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. Stud: Gypframe 70 AS 50 AcouStud. Abutments and openings: Gypframe 70 S 50 'C' Stud.
Insulation	Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).
Linings	Board side 1, Layer 1: Gyproc SoundBloc 12.5mm. Board side 1, Layer 2: Gyproc DuraLine 15mm. Board side 2, Layer 1: Gyproc SoundBloc 12.5mm. Board side 2, Layer 2: Gyproc DuraLine 15mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 1, Layer 2: British Gypsum Drywall Screws 40mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 2: British Gypsum Drywall Screws 40mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap.
Finish	Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/Q606A063SF-EN#details

Fire resistance	BS EN 1364-1, 90 / 90 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 58 Rw dB
Strength grade	BS 5234-2, Severe duty (SD)
Partition height	4700mm
Partition thickness	131mm
