Description

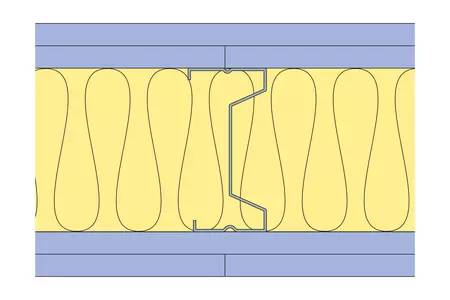

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 100mm Isover Modular Roll in the cavity in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4200mm.

General information

Finish

-

Manufacturer guidance

Finish coat, Side 1: Thistle MultiFinish.

Finish coat, Side 2: Thistle MultiFinish.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

148 mm

Height

4200 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 92 AS 50 AcouStud.
Abutments and openings: Gypframe 92 S 50 'C' Stud.

Insulation

Insulation, Layer 1: 100mm Isover Modular Roll.

Linings

Board side 1, Layer 1: Gyproc SoundBloc 12.5mm.
Board side 1, Layer 2: Gyproc SoundBloc 12.5mm.
Board side 2, Layer 1: Gyproc SoundBloc 12.5mm.
Board side 2, Layer 2: Gyproc SoundBloc 12.5mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 35mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 35mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

Finish coat, Side 1: Thistle MultiFinish.
Finish coat, Side 2: Thistle MultiFinish.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A292S-A-EN#details

Fire resistance

BS EN 1364-1, 60 / 60 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 60 Rw dB / 54 Rw + Ctr dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4200mm

Partition thickness

148mm
