GypWall Single Frame - A206A286S (EN)

Name: GypWall Single Frame - A206A286S (EN)
Brand: British Gypsum
SKU: emubGiqmxMqvBxiyB7ZP1j

Verified by manufacturer 17 days ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

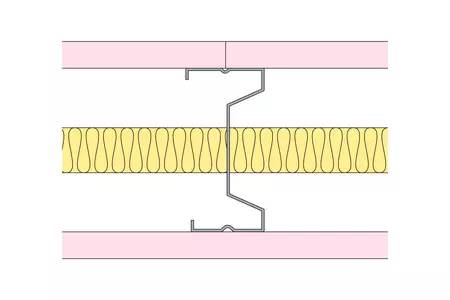

One layer of Gyproc FireLine 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.

General information

Finish	- Manufacturer guidance Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	128 mm
Height	4000 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

Product range	Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 AS 50 AcouStud. Abutments and openings: Gypframe 92 S 50 'C' Stud.
Insulation	Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).
Linings	Board side 1, Layer 1: Gyproc FireLine 15mm. Board side 2, Layer 1: Gyproc FireLine 15mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'.
Finish	Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A286S-EN#details

Fire resistance	BS EN 1364-1, 60 / 60 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 45 Rw dB
Strength grade	BS 5234-2, Heavy duty (HD)
Partition height	4000mm
Partition thickness	128mm

GypWall Single Frame - A206A286S (EN)

Description

General information

Finish

Manufacturer guidance

Material

Width

Height

Uniclass

CAWS

Product range

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 AS 50 AcouStud. Abutments and openings: Gypframe 92 S 50 'C' Stud.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc FireLine 15mm. Board side 2, Layer 1: Gyproc FireLine 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A286S-EN#details

Fire resistance

Sound insulation

Strength grade

Partition height

Partition thickness
