GypWall Single Frame - A206A283S (EN)
Verified by manufacturer 2 months ago
Description

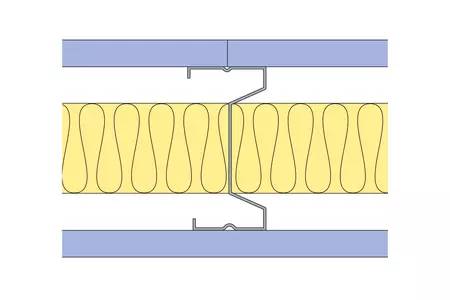

One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.
General information
Finish | Manufacturer guidanceFinish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 128 mm |
Height | 4000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
SKU Code | SP00010239 |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 AS 50 AcouStud. Abutments and openings: Gypframe 92 S 50 'C' Stud. |
Insulation | Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 15mm. Board side 2, Layer 1: Gyproc SoundBloc 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'. |
Finish | Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A283S-EN#details |
Fire resistance | BS EN 1364-1, 30 / 30 Integrity / Insulation |
Sound insulation | BS EN ISO 10140-2, 52 Rw dB |
Strength grade | BS 5234-2, Heavy duty (HD) |
Partition height | 4000mm |
Partition thickness | 128mm |
