Description

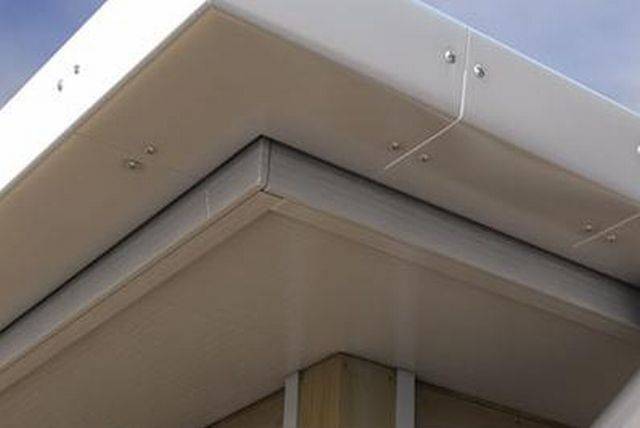

Alumasc GX is a pressed gutter system designed for traditional wet jointing on site. GX is offered in three versions (smooth, joggle and moulded) to suit differing contexts of use, but all meeting the architectural and functional requirements for a simple and conventionally installed box gutter.

GX Smooth incorporates softer corner radii and a front wall slightly inclined forwards and terminating in a radiused lip. These features allow simpler jointing including the elimination of sole support brackets and visible screw fixing, giving GX Smooth a sleek and clean appearance, similar to that offered by extruded dry jointed systems.

General information
Material

Sheet aluminium pressings

Uniclass 2015
Aluminium eaves gutters (Pr_65_50_35_06)Primary
Specification data - Aluminium eaves gutters
Product Reference

GXS2 140 mm Smooth gutter

Colour/ Finish

Plain mill finish

RAL 1011m Brown Beige

Polyester powder-coated.

RAL 1013m Pearl White

Polyester powder-coated.

RAL 1021m Cadmium Yellow

Polyester powder-coated.

RAL 2002m Vermilion

Polyester powder-coated.

RAL 3003m Ruby Red

Polyester powder-coated.

RAL 3005m Wine Red

Polyester powder-coated.

RAL 5003m Sapphire Blue

Polyester powder-coated.

RAL 5010m Flower Blue

Polyester powder-coated.

RAL 6005m Moss Green

Polyester powder-coated.

RAL 6018m Yellow Green

Polyester powder-coated.

RAL 7005m Mouse Grey

Polyester powder-coated.

RAL 7006m Beige Grey

Polyester powder-coated.

RAL 7012m Basalt Grey

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey

Polyester powder-coated.

RAL 7037m Dusty Grey

Polyester powder-coated.

RAL 7038m Agate Grey

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown

Polyester powder-coated.

RAL 8019m Grey brown

Polyester powder-coated.

RAL 9006m Metallic Silver

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss)

Polyester powder-coated.

RAL 9016m White

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss)

Textured Black

Bespoke, RAL or BS

Polyester powder-coated. Consult literature for details and insert requirements.

Fittings -
Clips and straps

GXS2/BRKA bracket strap

GXS2/UCA union clips

As drawing ___

Contractor's choice

Angles

GXS2/EA90A 90° external angle

GXS2/IA90A 90° internal angle

GXS2/EA135A 135° external angle

GXS2/IA135A 135° internal angle

As drawing ___

Contractor's choice

Outlets

GXS2/RO25A running outlet, 63 mm diameter

GXS2/RO30A running outlet, 75 mm diameter

GXS2/RO40A running outlet, 100 mm diameter

GXS2/SO33A running outlet, 75 mm square

GXS2/SO43A running outlet, 75 x 100 mm rectangular

GXS2/SO44A running outlet, 100 mm square

As drawing ___

Contractor's choice

Stop end

GXS2/SELA left hand stop end

GXS2/SERA right hand stop end

As drawing ___

Contractor's choice

Standard product features

Material:

Sheet aluminium pressings.

Dimensions:

  • Size: 140 x 100 mm.
  • Length: 3000 mm.
  • Sheet thickness: 1.5 mm.

Product Options

Colour/ Finish:

Polyester powder coated to BS EN 12206-1: 2004. The standard range of colours is produced with a 30% gloss finish unless otherwise stated. Coating to have BBA certificate.
