GW70 Casement Window

Verified by manufacturer over a year ago

Fixed

Glideline Ltd Variant:

Aluminum casement windows.

Jump to:
BOS
 +44 (0)800 772 3342 Website

Description

Aluminum casement windows with slim sightlines.


Features and benefits:

  • Internal and external flat casement sash.
  • Neat, simple and contemporary design.
  • Thermally efficient.
  • Made to measure.
  • Low maintenance.
  • Available in a range of colours and finishes.

General information

Color

Black

Blue

Bronze

Brown

Copper

Show more

Manufacturer guidance

Standard powder-coat colours are RAL 7016M Anthracite Grey Matt, RAL 9005M Jet Black Matt and RAL 9010G Pure White Gloss.

Finish

Powder-coated

Guidance for specification option:

RAL finish and wood effect.

Anodized

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Manufacturer guidance

Fixed panel: 150–3000 mm.

Side hung panel: 350–700 mm.

Top hung panel: 400–1200 mm.

Height

Bespoke

Manufacturer guidance

Fixed panel: 150–3000 mm.

Side hung panel: 400–1500 mm.

Top hung panel: 350–1500 mm.

Warranty description

Ten year

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

Fixed.

Manufacturer guidance

Refer to a drawing or schedule.

Multiple panels allowed with transoms and mullion.

Fixed panel

  • Area limit 8 m².
  • Height limits 150–3000 mm.
  • Width limits 150–3000 mm.

Side hung panel

  • Height limits 400–1500 mm.
  • Width limits 350–700 mm.

Top hung panel

  • Height limits 350–1500 mm.
  • Width limits 400–1200 mm.

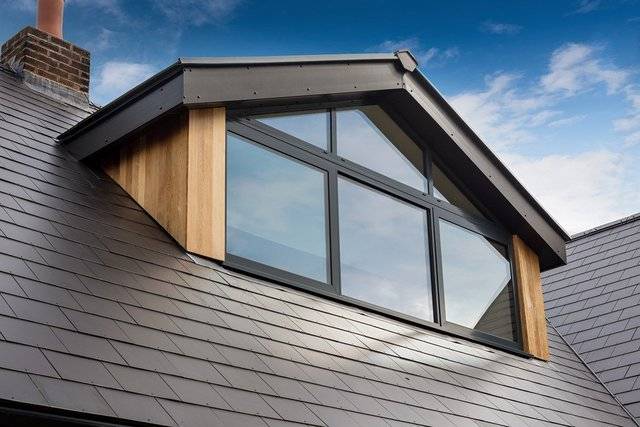

  • Shaped glass – pitched corners and gable windows.

Product performance

-

Weather performance

-

Air permeability

To EN 12207, Class 4.

Manufacturer guidance

Reference: 1.438 x 1.33 m/ 1 fixed light.

Watertightness

To EN 12208, Class E1200.

Manufacturer guidance

Reference: 1.438 x 1.33 m/ 1 fixed light.

Resistance to wind load

To EN 12210, CE 2400.

Manufacturer guidance

Reference: 1.438 x 1.33 m/ 1 fixed light.

Thermal

-

Whole window U-value

-

Manufacturer guidance

From 1.0 W/m²K. Consult manufacturer and insert requirements.

Frame

-

Profile

70 mm depth.

Finish as delivered

-

Coating

Powder-coated.

Wood effect powder-coating.

Anodized.

Manufacturer guidance

Powder-coated finish:

  • Textured finish available.
  • Split colour for interior/exterior available.

Colour

RAL 7016M.

Guidance for specification option:

Powder-coated, Anthracite grey, matt.

RAL 9005M.

Guidance for specification option:

Powder-coated, Black, matt.

RAL 9010G.

Guidance for specification option:

Powder-coated, Pure white, gloss.

RAL.

Guidance for specification option:

  • Powder-coating.
  • Available in 150+ RAL finishes
  • Consult manufacturer and insert requirements.

Wood effect powder-coating, pine.

Wood effect powder-coating, oak.

Wood effect powder-coating, cherry wood.

Wood effect powder-coating, sapele.

Wood effect powder-coating, African walnut.

Wood effect powder-coating, walnut.

Wood effect powder-coating, chestnut.

Wood effect powder-coating, white wood.

Silver brushed.

Guidance for specification option:

Anodized.

Silver rough brushed.

Guidance for specification option:

Anodized.

Bright silver.

Guidance for specification option:

Anodized.

Matte silver.

Guidance for specification option:

Anodized.

Brushed steel.

Guidance for specification option:

Anodized.

Rough brushed steel.

Guidance for specification option:

Anodized.

Brushed champagne re-polished.

Guidance for specification option:

Anodized.

Bright gold.

Guidance for specification option:

Anodized.

Brushed inox re-polished.

Guidance for specification option:

Anodized.

Stainless steel.

Guidance for specification option:

Anodized.

Rough brushed ivory re-polished.

Guidance for specification option:

Anodized.

Brushed bronze.

Guidance for specification option:

Anodized.

Rough brushed bronze and re-polished.

Guidance for specification option:

Anodized.

Rough brushed copper re-polished.

Guidance for specification option:

Anodized.

Rough brushed Bordeaux re-polished.

Guidance for specification option:

Anodized.

Rough brushed green.

Guidance for specification option:

Anodized.

Rough brushed blue re-polished.

Guidance for specification option:

Anodized.

Rough brushed grey re-polished.

Guidance for specification option:

Anodized.

Matte black.

Guidance for specification option:

Anodized.

Film thickness (minimum)

-

Manufacturer guidance

Anodized aluminium

  • Class 15; 15-19 micrometer coating for external use as standard.
  • Class 20; 20-24 micrometer coating for use in aggressive conditions, industrial areas and marine pollution.

Insert requirements.

Glazing or infill

-

Requirements

-

Manufacturer guidance

Maximum glass thickness 44 mm. Consult manufacturer and insert requirements.

Operation

-

Type

Manual.

Acoustic insulation

46 dB (maximum).

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

Glass and aluminium 100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %
