Gunner Cast Iron Bollard
Description

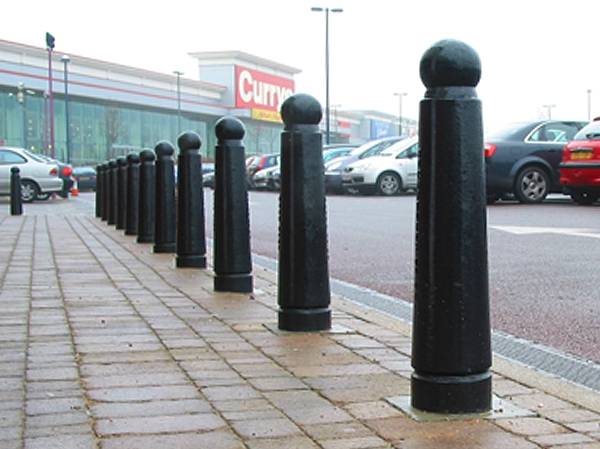

Bollard with a gently tapered profile and ball-top, based on a simplified cannon form. The range is offered in two size versions, with the Gunner Major to help aid visibility in pedestrianized areas, thereby helping to meet the requirements of the Disability Discrimination Act (DDA). It also complies with BS 8300. The Gunner is also available as a security version, popular at retail parks and shopping outlets.

General information

Finish

Primed (it is recommended that top coats are applied on site after installation)

Uniclass 2015

Pr_20_76_08_14 Cast iron bollardsPrimary
Specification data - Cast iron bollards

Product Reference

GUN 100

Cast iron, major.

GUN 100 SC

Cast iron with steel core, major security.

GUN 503

Cast iron, standard.

GUN 503 SC

Cast iron with steel core, security.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

Crest/ logo

Insert requirements.

Drilled to accept rails/ post and rail system

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

- GUN 100:

  • Above ground: 1000 mm.
  • Below ground: 325 mm.
  • Diameter: 175 mm.
  • Weight: 50 kg.

- GUN 100 SC:

  • Security bollard: Reinforced with steel core.
  • Above ground: 1000 mm.
  • Below ground: 600 mm.
  • Diameter: 175 mm.
  • Weight: 65 kg.

- GUN 503:

  • Above ground: 750 mm.
  • Below ground: 300 mm.
  • Diameter: 165 mm.
  • Weight: 35 kg.

- GUN 503 SC:

  • Security bollard: Reinforced with steel core.
  • Above ground: 750 mm.
  • Below ground: 600 mm.
  • Diameter: 165 mm.
  • Weight: 50 kg.

Finish:

Primed (it is recommended that top coats are applied on site after installation).

Fixing:

Root fixed.
