Gunner Bollard
Description

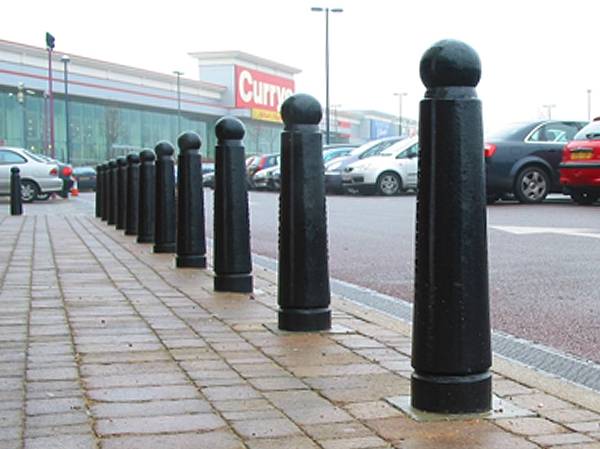

Bollard with a gently tapered profile and ball-top, based on a simplified cannon form. The range is offered in two size versions, with the Gunner Major to help aid visibility in pedestrianized areas, thereby helping to meet the requirements of the Disability Discrimination Act (DDA). It also complies with BS 8300. The Gunner is also available as a removable bollard in cast aluminium and security version - with the latter popular at retail parks and shopping outlets.

General information

Finish

Primed

Standard for all bollards except GUN 0503.

Two pack gloss paint

GUN 0503 only; consult manufacturer and insert colour requirements.

Specification data

Product Reference

GUN 100

Cast iron, major.

GUN 100 SC

Cast iron with steel core, major security.

GUN 503

Cast iron, standard.

GUN 503 AR

Cast aluminium, removable.

GUN 503 SC

Cast iron with steel core, security.

GU 0503

Polyurethane (PU).

Finish

Primed

Standard for all bollards except GUN 0503.

Two pack gloss paint

GUN 0503 only; consult manufacturer and insert colour requirements.

Socket

Not required

For root fixed bollards.

F1 60

Small composite socket for 60 mm diameter bollards.

F1 75

Small composite socket for 75 mm diameter bollards.

F1 115

Large composite socket for 115 mm diameter bollards.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

Crest/ logo

Insert requirements.

Drilled to accept rails/ post and rail system

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

- GUN 100:

  • Above ground: 1000 mm.
  • Below ground: 325 mm.
  • Diameter: 175 mm.
  • Weight: 50 kg.
  • Fixing: Root fixed.

- GUN 100 SC:

  • Security bollard: Reinforced with steel core.
  • Above ground: 1000 mm.
  • Below ground: 600 mm.
  • Diameter: 175 mm.
  • Weight: 65 kg.
  • Fixing: Root fixed.

- GUN 503:

  • Above ground: 750 mm.
  • Below ground: 300 mm.
  • Diameter: 165 mm.
  • Weight: 35 kg.
  • Fixing: Root fixed.

- GUN 503 SC:

  • Security bollard: Reinforced with steel core.
  • Above ground: 750 mm.
  • Below ground: 600 mm.
  • Diameter: 165 mm.
  • Weight: 50 kg.
  • Fixing: Root fixed.

- GUN 503 AR:

  • Above ground: 750 mm.
  • Below ground: 320 mm.
  • Diameter: 165 mm.
  • Weight: 18 kg.
  • Fixing: Removable.

- GUN 0503:

  • Above ground: 750 mm.
  • Below ground: 300 mm.
  • Diameter: 160 mm.
  • Weight: 15 kg.
  • Fixing: Root fixed.

Product Options

Finish:

It is recommended that top coats are applied on site after installation on primed products.

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
