Gunner Aluminium Removable Bollard
Description

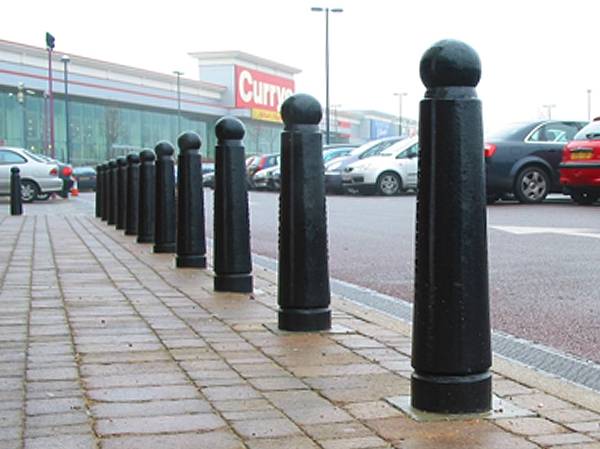

Bollard with a gently tapered profile and ball-top, based on a simplified cannon form. The Gunner is a removable bollard in cast aluminium.

General information
Specification data - Aluminium alloy bollards

Product Reference

GUN 503 AR

Socket

F1 60

Small composite socket for 60 mm diameter bollards.

F1 75

Small composite socket for 75 mm diameter bollards.

F1 115

Large composite socket for 115 mm diameter bollards.

SOCKSS

Small steel socket for bollards <170 mm diameter.

SOCKLS

Large steel socket for bollards ˃170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

Crest/ logo

Insert requirements.

Drilled to accept rails/ post and rail system

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

  • Above ground: 750 mm.
  • Below ground: 320 mm.
  • Diameter: 165 mm.
  • Weight: 18 kg.
  • Fixing: Removable.
  • Finish: Primed (it is recommended that top coats are applied on site after installation).

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
