Gully KPSG Paver Slot
Application

Paver slot drainage for truck loading and other heavy duty applications.

Description

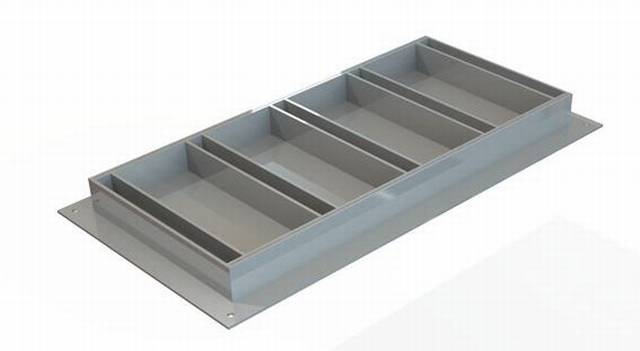

External heavy duty grating which has recesses where block pavers can be inserted. The trays are generally 80 mm deep which suit 60 mm deep blocks, but they can be manufactured to any depth to suit the required paving pattern.

Supplied as a single tray with angle frame. The tray features slots which act as drains when installed.

Manufactured in accordance with FACTA and BS EN 124 from Grade 1.4404 (316L) stainless steel as standard.

Features and benefits:

  • Slot drain feature.
  • The frame has a perimeter flange.
  • Available to suit paving pattern - consult manufacturer for details.
  • Heel-proof and suitable for heavy good vehicle loading.

Applications:

Paver slot drainage for truck loading and other heavy duty applications.

General information

Size

560 x 458 x 80 mm

As drawing

Size can be customized, insert requirements.

Material

Galvanized carbon steel

Grade 1.4307 (304L) stainless steel

Grade 1.4404 (316L) stainless steel

Standard.

Uniclass 2015

Pr_65_52_24_29 Floor channel covers and gratingsPrimary

CAWS

R11/310 Floor channels

Specification data - Floor channel covers and gratings

Product Reference

KPSG-560/370 Paver Slot Grating

Size

560 x 458 x 80 mm

As drawing

Size can be customized, insert requirements.

Material

Galvanized carbon steel

Grade 1.4307 (304L) stainless steel

Grade 1.4404 (316L) stainless steel

Standard.

Loading

BS EN 124 A15

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 1.5 tonnes.

BS EN 124 B125

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 12.5 tonnes.

BS EN 124 C250

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 25 tonnes.

BS EN 124 D400

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 40 tonnes.

FACTA A

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 0.8 tonnes.

FACTA AA

Slow moving wheel load: 1.5 tonnes. Kent safety test (unfilled): 3.1 tonnes.

FACTA AAA

Slow moving wheel load: 2.5 tonnes. Kent safety test (unfilled): 5.2 tonnes.

FACTA B

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 10.1 tonnes.

FACTA C

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 13.2 tonnes.

FACTA D

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 22 tonnes.

Accessories

None

Stainless steel outlet
