Application

Round, trapped gullies are used in conjunction with a main sewer and can also be used on a road for storm water drainage. Square gullies are mainly used on the road for storm water drainage. These non-trapped gullies can also be used domestically.

Description

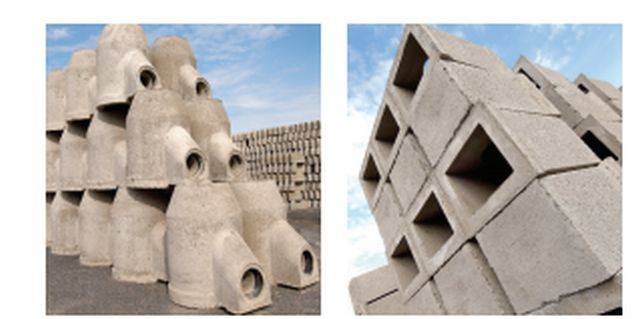

Round and square drainage gullies produced monolithically from an automated machine, providing a strong robust unit, needing no concrete surround and not subject to flotation.

Applications:

Round, trapped gullies are used in conjunction with a main sewer and can also be used on a road for storm water drainage. Square gullies are mainly used on the road for storm water drainage. These non-trapped gullies can also be used domestically.

General information
Size

375 mm diameter

Round, 50 L/ 68 L capacity (750 mm/ 900 mm depth).

385 x 300 mm

Square, 35 L capacity.

400 x 400 mm

Square, 40 L capacity.

450 mm diameter

Round, 68 L/ 95 L capacity (750 mm/ 900 mm depth).

Material

Precast concrete

Uniclass 2015
Concrete one-piece gullies (Pr_65_52_24_18)Primary
Specification data - Concrete one-piece gullies
Product Reference

Gullies

Size

375 mm diameter

Round, 50 L/ 68 L capacity (750 mm/ 900 mm depth).

385 x 300 mm

Square, 35 L capacity.

400 x 400 mm

Square, 40 L capacity.

450 mm diameter

Round, 68 L/ 95 L capacity (750 mm/ 900 mm depth).

Depth

750 mm

900 mm

Not available with 385 x 300 mm and 400 x 400 mm square gullies.

Accessories

None

Hinged dished gully grate and frame

To suit concrete channel kerbs.

Iron hinged grate and frame to suit 375 mm road gullies

To BS EN 124/ ISO 161.

Iron hinged grate and frame to suit 450 mm road gullies

To BS EN 124/ ISO 161.

To BS EN 124/ ISO 161.

Silt trap box

480 x 480 mm (430 mm deep).

Slotted drainage channel

255 x 255 x 915 mm.

Standard product features

Material:

Precast concrete.

Outlet diameter:

150 mm.
