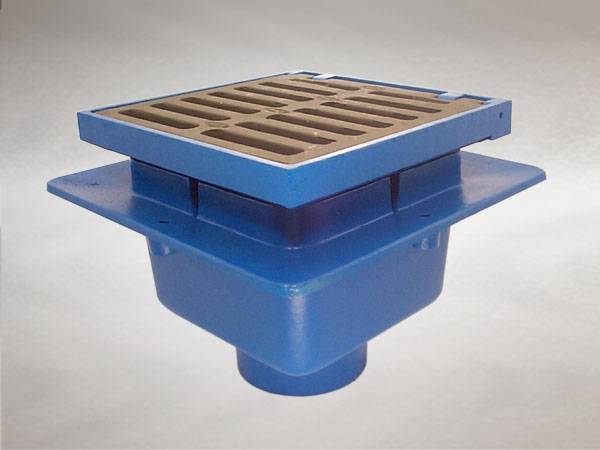

Gullies for Unfinished Floors - F Series
Description

Gullies for use in car parks, yards, warehouses, plant rooms etc. Versions are available with cast iron or stainless steel body. Bodies with spigot outlet are for direct connections to BS 416 pipe work; versions with BSP threaded outlet are for connection to pipe work by means of a spigot adaptor.

Features:

  • Body: Cast iron or stainless steel.
  • Height adjustable: The grating sits in an adjustable collar.
  • Weepholes: Provide supplementary drainage at membrane level.

General information

Features

Body: Cast iron or stainless steel

Height adjustable: The grating sits in an adjustable collar

Weepholes: Provide supplementary drainage at membrane level

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Gullies for Unfinished Floors - F Series

Body

F204 - Cast iron, outlet size 4" BSP, sherardized ductile iron grating

F206 - Cast iron, outlet size 6" BSP, sherardized ductile iron grating

F214 - Cast iron, outlet size 4" BSP, stainless steel bar grating

F216 - Cast iron, outlet size 6" BSP, stainless steel bar grating

F304 - Stainless steel, outlet size 100 mm BS 416, sherardized ductile iron grating

F306 - Stainless steel, outlet size 150 mm BS 416, sherardized ductile iron grating

Grating

Ductile iron

Standard.

NB

Nickel bronze.

PB

Polished bronze - check availability.

Standard product features

Grating:

Ductile iron with sherardized protective coating (applies to F204, F206, F304 and F306) or stainless steel (applies to F214 and F216); hinged and height-adjustable.

For finished floors in pedestrian areas, gratings are also available made of nickel bronze or polished bronze. For information on their load rating, contact Technical Services Dept.

- Height adjustability:

The grating sits in an adjustable collar and by rotating this assembly a quarter turn at a time, its height above the body flange can be adjusted, in 12 mm increments, within the following limits:

  • F2 Series (maximum/ minimum height): 106/ 70 mm.
  • F3 Series (maximum/ minimum height): 82/ 46 mm.

Product Options

Membrane clamping collar:

Add suffix 'C' to body reference.

Stainless steel filter bucket:

Add suffix 'B' to body reference.
