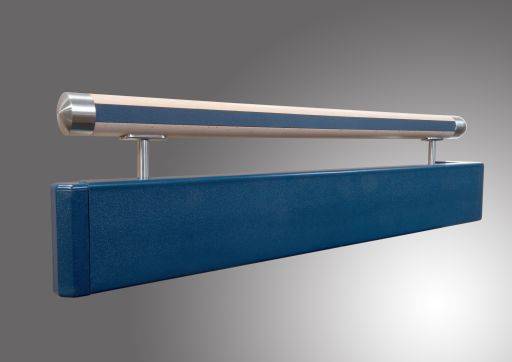

Two part handrail system.
A two part system comprising of the Guardian 50 mm Diameter Handrail uppermost, underslung with either a 125 or 200 mm deep protection rail (on a solid MDF or aluminium core) incorporating a two part fixing spacer complete with stainless steel posts. The product is ideal for areas where a solid protection rail is required to protect walls from wheeled and motorized trolleys and carts whilst a handrail support is also required for use by pedestrians. With the protection rail standing slightly forward of the handrail, dual capability of this product helps to reduce maintenance and repainting costs by eliminating the damage that can be caused to the lower level of walls as well as the upper handrail. The rigid PVC-U rails do not harbour the growth of bacteria if cleaned regularly and are available in an array of colours with matching or contrasting accessories.
PVC-U, 50 mm diameter Handrail/ 125 mm protection rail.
PVC-U, 50 mm diameter Handrail/ 200 mm protection rail.
Stainless steel, 50mm diameter Handrail/ 125 mm protection rail.
Stainless steel, 50 mm diameter Handrail/ 200 mm protection rail.
Timber, 50 mm diameter Handrail/ 125 mm protection rail.
Timber, 50 mm diameter Handrail/ 200 mm protection rail.
See 'Options' below and insert requirements.
Stone Grey (Dark)
Contrasting PVC-U colour insert, 20 mm
|Standard product features|
Protection rail colour:
Though all the above colour ways are available, Yeoman Shield would recommend the use of contrasting accessories to highlight corners, stop/ start points, doorways and changes in direction as recommended under DDA guidelines, the Building Regulations, British Standards and Construction Guidelines for Handrails. If matching accessories are preferred then these are only available in the above colours in Cream, Black, White, Opal Green, Buff, Steel Blue and Light Green PVC-U sleeve.
Guardian 50 mm Diameter Handrail PVS-U: GHR50P
Guardian 50 mm Diameter Handrail Stainless Steel: GHR50S
Guardian 50 mm Diameter Handrail Timber: GHR50T
Guardian Twin Handrail PVC-U: 125PR
Guardian Twin Handrail PVC-U: 200PR
Guardian Twin Handrail Stainless Steel: 125PR
Guardian Twin Handrail Stainless Steel: 200PR
Guardian Twin Handrail Timber: 125PR
