Description

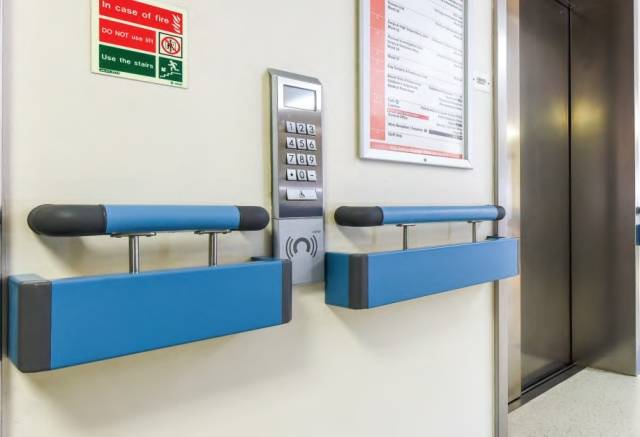

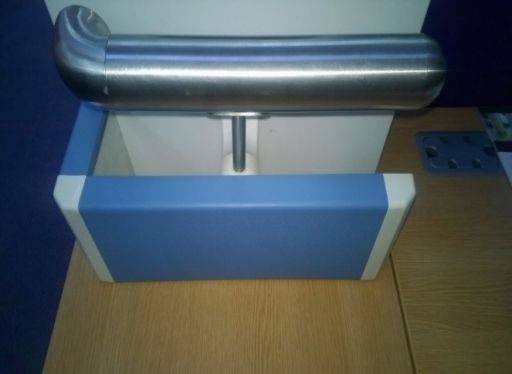

A two part system comprising of the Guardian 50 mm Diameter Handrail uppermost, underslung with either a 125 or 200 mm deep protection rail (on a solid MDF or aluminium core) incorporating a two part fixing spacer complete with stainless steel posts. The product is ideal for areas where a solid protection rail is required to protect walls from wheeled and motorized trolleys and carts whilst a handrail support is also required for use by pedestrians. With the protection rail standing slightly forward of the handrail, dual capability of this product helps to reduce maintenance and repainting costs by eliminating the damage that can be caused to the lower level of walls as well as the upper handrail. The rigid PVC-U rails do not harbour the growth of bacteria if cleaned regularly and are available in an array of colours with matching or contrasting accessories.

General information
Color

Natural

Features

Rails connected together via a cream PVC-U injection moulded 90 mm two part spacer complete with stainless steel post

Finish

Polished

Material

Handrail: Stainless steel grade 1.4301 (304); Protection rail: Extruded Vinylac

Uniclass 2015
Handrail systems (Ss_25_60_05_35)Primary
Specification data - Handrail systems
Product Reference

GTR50P/ 125PR

PVC-U, 50 mm diameter Handrail/ 125 mm protection rail.

GTR50P/ 200PR

PVC-U, 50 mm diameter Handrail/ 200 mm protection rail.

GTR50S/ 125PR

Stainless steel, 50mm diameter Handrail/ 125 mm protection rail.

GTR50S/ 200PR

Stainless steel, 50 mm diameter Handrail/ 200 mm protection rail.

GTR50T/ 125PR

Timber, 50 mm diameter Handrail/ 125 mm protection rail.

GTR50T/ 200PR

Timber, 50 mm diameter Handrail/ 200 mm protection rail.

Colour -
PVC-U sleeve

Black

Buff

Cream

Dusty

Grey

Light Green

Mid Grey

Opal Green

Pastel Blue

Steel Blue

White

Protection Rail:

See 'Options' below and insert requirements.

PVC-U handrail

Black

Buff

Cream

Dusty

Grey

Light Green

Mid Grey

Opal Green

Steel Blue

Stone Grey (Dark)

White

Accessories

None

Contrasting PVC-U colour insert, 20 mm

GHR50T only.

External corners

Internal corners

Stop ends

Wall return

Standard product features

Composition:

  • Handrail: 50 mm diameter extruded PVC-U sleeve mounted on an aluminium core, solid timber or 1.4301 (304) stainless steel tube.
  • Protection rail: 125 or 200 mm extruded Vinylac.

Product Options

Protection rail colour:

  • BS 00 E 53 - Black.
  • BS 04 E 49 - Pink Rose.
  • BS 04 E 53 - Red.
  • BS 08 B 17 - Mushroom.
  • BS 08 B 21 - Mocha
  • BS 08 B 29 - Brown.
  • BS 08 E 51 - Yellow.
  • BS 10 B 15 - Cream.
  • BS 10 C 33 - Primrose.
  • BS 10 E 50 - Grapefruit.
  • BS 14 C 31 - Sage Green.
  • BS 14 E 53 - Green.
  • BS 18 C 35 - Pigeon Blue.
  • BS 18 E 53 - Regatta Blue.
  • BS 20 C 33 - Powder Blue.
  • BS 22 B 17 - Lavender.
  • BS 24 C 39 - Aubergine.
  • RAL 1001 - Buff.
  • RAL 2012 - Tangerine.
  • RAL 3003 - Burgundy.
  • RAL 3027 - Red.
  • RAL 4001 - Lilac.
  • RAL 4004 - Bordeaux.
  • RAL 4012 - Amethyst.
  • RAL 5000 - Trafalgar Blue.
  • RAL 5001 - Steel Blue.
  • RAL 5002 - Dark Blue.
  • RAL 5012 - Cornflower Blue.
  • RAL 5017 - Royal Blue
  • RAL 5018 - Aqua Blue.
  • RAL 5024 - Pastel Blue.
  • RAL 6004 - Opal Green.
  • RAL 6019 - Pastel Green.
  • RAL 6027 - Light Green.
  • RAL 7015 - Dark Grey.
  • RAL 7037 - Dusty Grey.
  • RAL 7046 - Graphite
  • RAL 9016 - White.
  • Avocado.
  • Blush.
  • Heather.
  • Orange.
  • Sky Blue.
  • Slate Green.
  • Terracotta.

DDA compliance:

Though all the above colour ways are available, Yeoman Shield would recommend the use of contrasting accessories to highlight corners, stop/ start points, doorways and changes in direction as recommended under DDA guidelines, the Building Regulations, British Standards and Construction Guidelines for Handrails. If matching accessories are preferred then these are only available in the above colours in Cream, Black, White, Opal Green, Buff, Steel Blue and Light Green PVC-U sleeve.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
