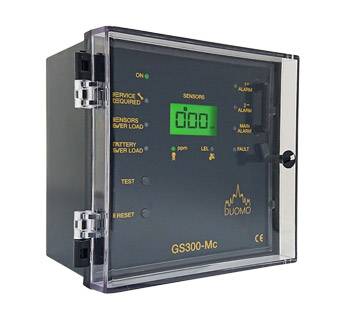

GS300Mc – 3 Channel Gas Detection Controller

GS300Mc – 3 Channel Gas Detection Controller

Duomo (UK) Ltd

The GS300Mc is a three channel gas detector controller for various gases - explosive and toxic.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for boiler plant rooms, industrial facilities and car parks. For use with Duomo gas sensors.

Description

Firstly, the GS300Mc uses a colour changing display. Therefore, panel status is immediately obvious to the user.


The GS300Mc is a three-channel gas detector controller for various gases - explosive and toxic. A wall or panel mounted microprocessor-based gas detector control unit. The GS300Mc is compatible with the complete range of Duomo gas sensors. The Gas Detector also has an override feature. As a result, sensor testing can be done with full control over outputs.


All Duomo products are manufactured to meet relevant European Normatives and proposals for explosive and toxic gases.


If you require a four-sensor controller please see the BX444Mc Gas Controller.


Features and benefits:

  • Three channel protection.
  • 230 V a.c. supply.
  • Wall or panel mounted.
  • Digital display with colour change feature.
  • Emergency stop connections.
  • Timed sensor test facility.
  • Positive safety option.
  • Detection of Toxic 0-300 ppm / Explosive Gas(es) 0-20% LEL / Oxygen 0-25%.
  • 4-20 mA signal sensor input.
  • Three alarm stages - 1st pre-alarm, 2nd pre-alarm and main alarm.
  • IP44 protective rating.
  • CE certified and approved to EN 61010-1, EN 50270, EN 50271, EN 45544-3, EN 60079-29-1, EN 50104.

General information

Color

Black

Shape

Square

Size

110 x 144 x 144 mm

WarrantyDescription

2 years, extendable to 3 years when registered at www.duomo.co.uk/product-warranty/

Uniclass 2015

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Ingress protection (minimum)

To BS EN 60529, IP44.

Nominal frequency

50 Hz.

Number of channels

Three.

Controls

-

Display type

Digital display with colour change feature.

Display the following information

Gas type.

Main alarm relay action.

Positive safety option.

Battery backup capacity

2.2 Ah.

Mounting method

Suitable for wall.

Suitable for panel mounting.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

GS300Mc Datasheet

GS300Mc Datasheet
