Description

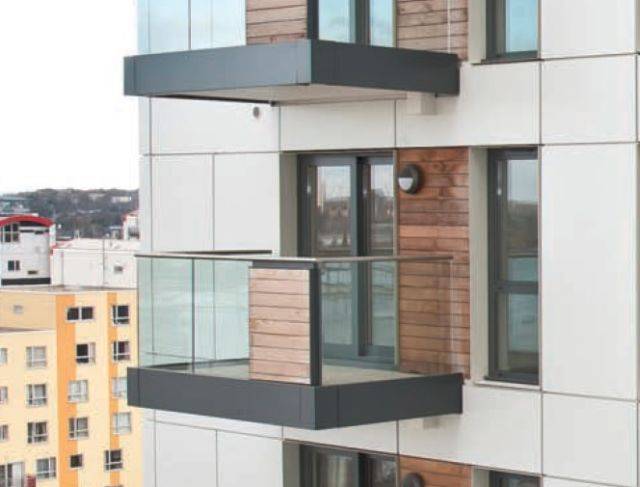

Aluminium and stainless steel glass railing system.

Features:

  • Comprises aluminium base rail and stainless steel railing, with glass fittings.
  • A range of attachment methods to the substrate has been developed – contact manufacturer for details.
  • Custom cutting and mitring service available.
  • Designed for use with toughened glass.

General information
Features

Comprises aluminium base rail and stainless steel railing, with glass fittings

A range of attachment methods to the substrate has been developed – contact manufacturer for details

Custom cutting and mitring service available

Designed for use with toughened glass

Uniclass 2015
Balustrade and guarding systems (Ss_25_60_05_05)Primary
Specification data - Balustrade and guarding systems
Product Reference

GRS Glass Railing System - Taper-Loc Small Profile Windscreen Base Shoe for Frameless Glass Balustrade System

Base shoe

B5B10

Undrilled.

B5B10D

Drilled.

Standard product features

Base shoe:

  • Standard square aluminium base shoe channel for glass railing systems. Not suitable for structural applications.
  • Size (h x w): 69.9 x 35 mm.
  • Length: 3050 mm.
  • Glass thickness suitability: 10 mm.
  • Finish: Mill.

TL5X10 Taper-Loc™ Taper Set:

  • Construction: Made up of two reinforced nylon tapers and one L-pressure block.
  • Glass thickness suitability: 10 mm.

TLK12 Installation/ Removal Tool:

Designed for tightening the Taper-Loc™ Taper Set in the channel of the base shoe.

EUGR20BS Premium Cap Railing:

  • Diameter: 48.3 mm.
  • Standard length: 3000 mm.
  • Finish: Brushed stainless steel grade 1.4401 (316).

Glass suitability:

Monolithic toughened. Laminated glass applications require TAPER-LOC laminated tapers only.
