Description

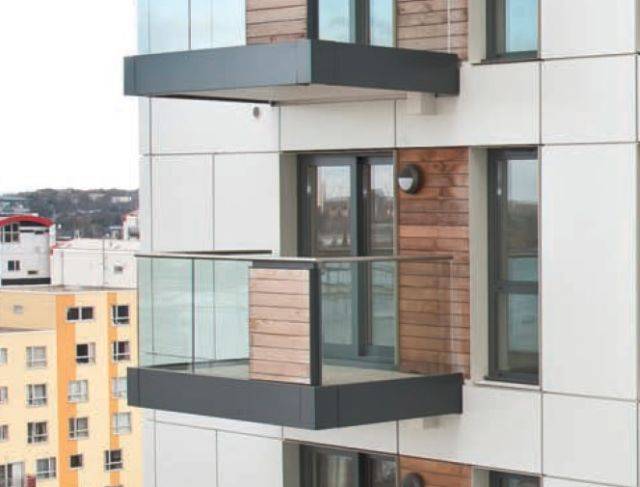

Aluminium and stainless steel glass railing system.

Features:

  • Comprises aluminium base rail and stainless steel railing, with glass fittings.
  • A range of attachment methods to the substrate has been developed – contact manufacturer for details.
  • Custom cutting and mitring service available.
  • Designed for use with toughened glass.

General information
Features

Comprises aluminium base rail and stainless steel railing, with glass fittings

A range of attachment methods to the substrate has been developed – contact manufacturer for details

Custom cutting and mitring service available

Designed for use with toughened glass

Uniclass 2015
Balustrade and guarding systems (Ss_25_60_05_05)Primary
Specification data - Balustrade and guarding systems
Product Reference

GRS Glass Railing System - Taper-Loc Base Shoe for Frameless Glass Balustrade System 9BL

Base shoe -
Type

9BL21D

Surface-mounted, 81 mm width, for 21.52 mm-thick glazing.

9BL21F

Side-mounted, 81 mm width, for 21.52 mm-thick glazing.

9BL25D

Surface-mounted, 86 mm width, for 25.52 mm-thick glazing.

9BL25F

Side-mounted, 86 mm width, for 25.52 mm-thick glazing.

9BL68D

Surface-mounted, 77 mm width, for 17.52 mm-thick glazing.

9BL68F

Side-mounted, 77 mm width, for 17.52 mm-thick glazing.

Finish

Brushed nickel

Mill

Satin anodized

Standard product features

Base shoe:

  • Standard square aluminium base shoe channel for glass railing systems.
  • Height: 121 mm.
  • Length: 3000 mm.

LTL10X/ LTL96X Taper-Loc™ Taper Set:

  • Construction: Made up of four reinforced nylon tapers and one L-pressure block.
  • Glass thickness suitability: 17.52 mm, 21.52 mm or 25.52 mm.

TLK12 Installation/ Removal Tool:

Designed for tightening the Taper-Loc™ Taper Set in the channel of the base shoe.

EUGR20BS Premium Cap Railing:

  • Diameter: 48.3 mm.
  • Standard length: 3000 mm.
  • Finish: Brushed stainless steel grade 1.4401 (316).

Glass suitability:

Toughened glass. Laminated glass applications require TAPER-LOC laminated tapers only.
