Pultruded GRP decking panels for walkways, platforms, ballast board and noise barriers.

Jump to:
BOS
+44 (0)1642 245151 Website

Application

  • Walkways.
  • Platforms.

Description

Pultruded glass reinforced polyester (GRP) decking panels for use on walkways and platforms.


Flowgrip Pultruded GRP decking panels are a lightweight and durable solution for walkways, platforms, ballast board and noise barriers while also being a long-lasting choice for many other industrial flooring applications.

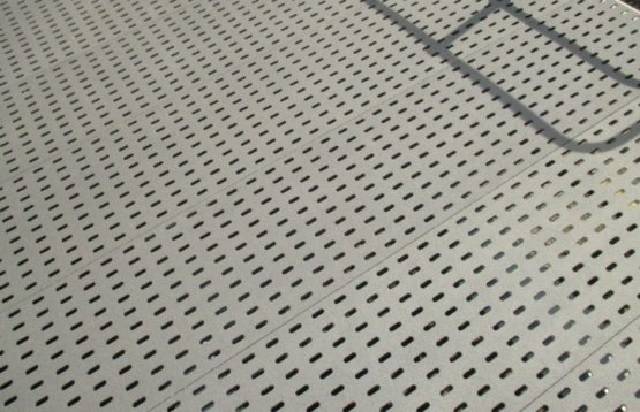

Used where solid flooring is required for odour control or for dropped object protection. Flowgrip is also available with a slotted top surface if drainage is required, making Flowgrip suitable for various applications.


The Isophthalic Polyester Grating panels are suitable for general use where factors such as high-strength, non-conductive, lightweight, and corrosion-resistance need to be considered.


Flowgrip panels are up to 50% lighter than steel. The panels are finished in a hard-wearing anti-slip gritted surface – compliant with National and Internationally recognised standards.


Features and benefits:

  • Durable.
  • Lightweight - up to 50% lighter than steel.
  • Available in both slotted and solid top variations to suit differing applications.
  • Fire rating (to ASTM E84): Class 1 (when <25 mm).
  • Creates an effective noise barrier.
  • Finished with a hard-wearing, anti-slip gritted surface.

General information

Color

Grey

Guidance for specification option:

Slate grey.

Yellow

Finish

Anti-slip

Guidance for specification option:

Hard-wearing, anti-slip gritted surface.

Material

Glass reinforced polyester

Guidance for specification option:

(GRP).

Uniclass

Pr_25_30_30_81 Solid glass fibre-reinforced plastics (GRP) platesPrimary

CAWS

L30/470 Ramps

L30/460 Walkways

Q55/380 Deck boards

L30/45 Ramps/ walkways

Product range

GRP / Decking

Specification data - Solid glass fibre-reinforced plastics (GRP) plates

Colour

Grey.

Guidance for specification option:

Slate grey.

Yellow.

Size

-

Length x width

6000 x 500 mm.

Depth

40 mm.

Type

Isophthalic Polyester.

Guidance for specification option:

Suitable for general use where factors such as high-strength, non-conductive, lightweight and corrosion resistant applications are required.

Surface

Slotted.

Solid top.

LoadBearingCapacity

3.0 kN/m².

5.0 kN/m².

7.5 kN/m².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Glass reinforced polyester

Guidance for specification option:

(GRP).
