Application

  • Walkways.
  • Platforms.
  • Gullies.
  • Drainage covers.

Description

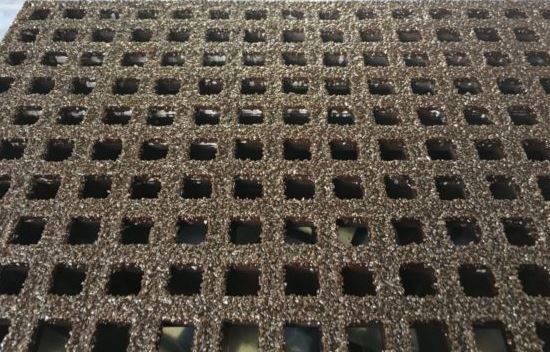

Glass reinforced polyester (GRP) grating with reduced size apertures for use on walkways, platforms, gullies and drainage covers.


Features and benefits:

  • Strong and durable.
  • Lightweight - up to 50% lighter than steel gratings.
  • The reduced size square apertures are sub-divided, and have shallow bars to meet 20 mm ball proof testing.

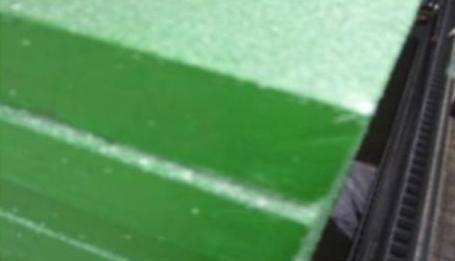

  • Finished with a hard-wearing, anti-slip gritted surface.

General information

Color

Other RAL colours may be available on request - consult manufacturer for details.

Brown

Antique brown.

Green

(RAL 6017).

Yellow

(RAL 1003).

Grey

Dark grey (RAL 7043).

Finish

Anti-slip

Hard-wearing, anti-slip gritted surface.

Material

Glass Reinforced Plastic (GRP)

(GRP).

Shape

Rectangle

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

L30/45 Ramps/ walkways

L30/460 Walkways

Q10/312 Footway gratings

Product range

GRP / Gratings

Specification data - Footway gratings

Material

Glass reinforced polyester.

(GRP).

Finish

Anti-slip.

Hard-wearing, anti-slip gritted surface.

Colour

Other RAL colours may be available on request - consult manufacturer for details.

Brown.

Antique brown.

Dark grey.

(RAL 7043).

Green.

(RAL 6017).

Yellow.

(RAL 1003).

Type

Isophthalic Polyester.

Suitable for general use where factors such as high-strength, non-conductive, lightweight and corrosion resistant applications are required.

Phenolic.

Has high fire retardant properties, and meets section 12 of London Underground standards for low smoke and toxicity use in tunnels.

Panel

3000 x 1000 mm.

3660 x 1220 mm.

4000 x 1000 mm.

Thickness

22 mm.

25 mm.

38 mm.

50 mm.

LoadBearingCapacity

3.0 kN/m².

5.0 kN/m².

7.5 kN/m².

Fire performance

To BS 476 Part 7: Class 0.

Phenolic

To ASTM E84: Class 1 (when <25 mm).

Isophthalic Polyester

Mesh size

19 x 19 mm.

Available with all thicknesses apart from 50 mm.

25 x 25 mm.

Available with 50 mm thickness only.
