Grilles/ Safety Gratings
Verified by manufacturer 17 hours ago

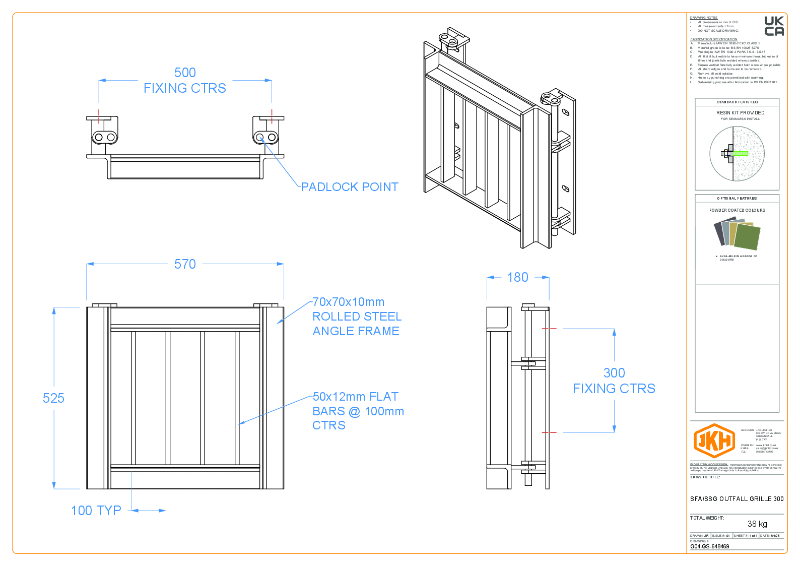

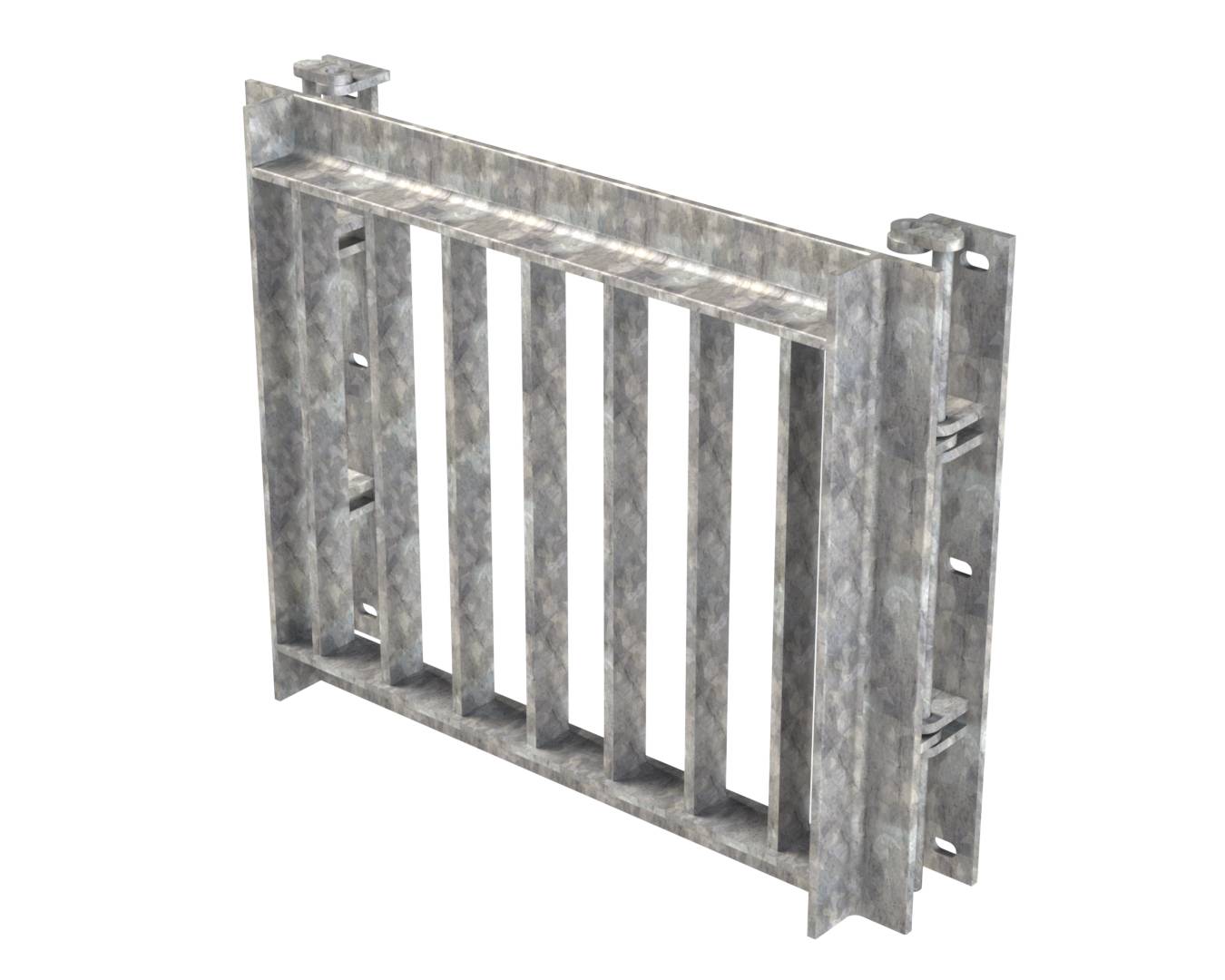

Outfall Safety Grille - 570 x 525 mm
Outfall Safety Grille - 570 x 525 mm
Headwall and outfall grilles.
Application
Grilles/ safety gratings for pipes.
Description

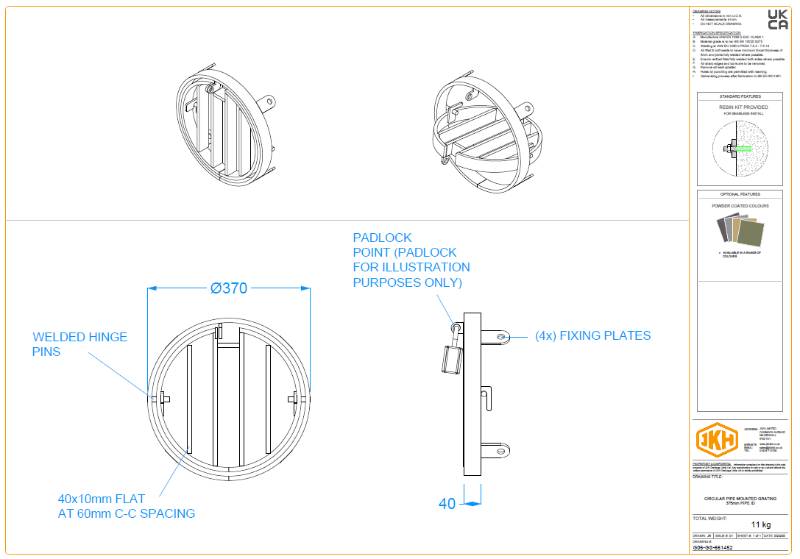

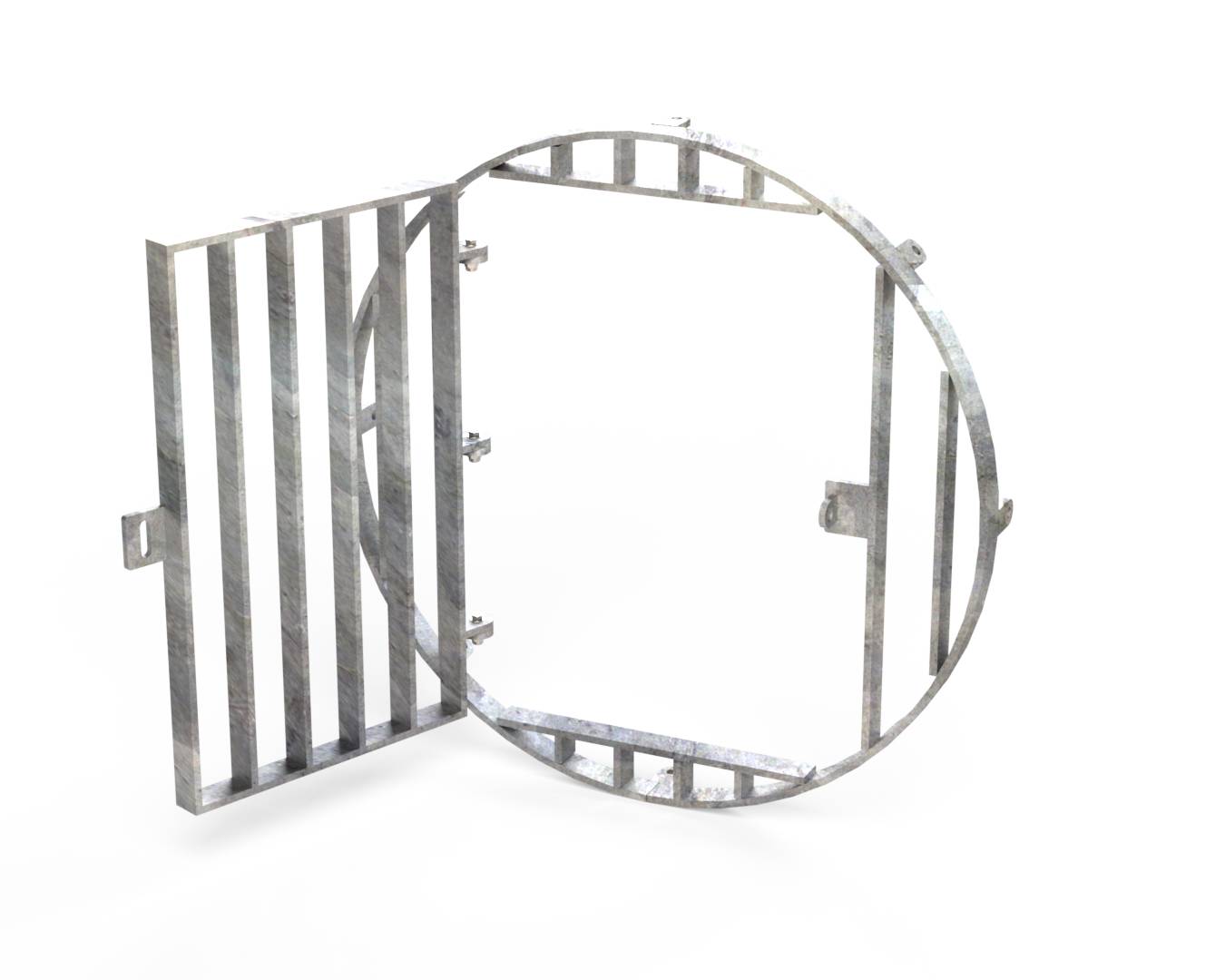

Outfall safety grilles and circular pipe mounted gratings.
Features and benefits:
- Cover pipe diameters from 300–1500 mm.
- Manufactured from mild steel as standard with stainless steel optional and available upon request.
- All of our outfall safety grilles, standard gratings, and trash screens are hot dip galvanized to BS EN 1461 after fabrication.
- Powder-coating is available.
- Each grating is hinged and lockable, designed to fit securely inside the pipe opening.
- Outfall safety grilles are Sewers for Adoption (SFA) and Sewerage Sector Guidance (SSG) compliant.
General information
Color | Silver Other |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel |
Shape | Circle Rectangle |
Length | 570 mm 815 mm 890 mm 965 mm 1040 mm |
Width | 295 mm 370 mm 395 mm 445 mm 495 mm |
Height | 295 mm 370 mm 395 mm 445 mm 495 mm |
Uniclass | |
CAWS | R13/700 Outlet headwalls |
Specification data - Headwall and outfall grilles
Classification data | |
Certification | Sewers for Adoption (SFA) and Sewerage Sector Guidance (SSG) compliant. |
Materials | Mild steel. Stainless steel. |
Finish | Hot dip galvanized to BS EN 1461. Hot dip galvanized to BS EN 1461 and powder-coated. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Dimensions | 570 x 525 mm. Manufacturer guidanceGrating size. |
Pipe diameter | 300 mm. Manufacturer guidancePipe internal diameter. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
Literature
SFA SSG Outfall Grating 300-1500 range
Circular Pipe Mounted Grating Range - 375-1500
Case studies
Custom Drain Grating for Devon County Council
