Verified by manufacturer 4 months ago

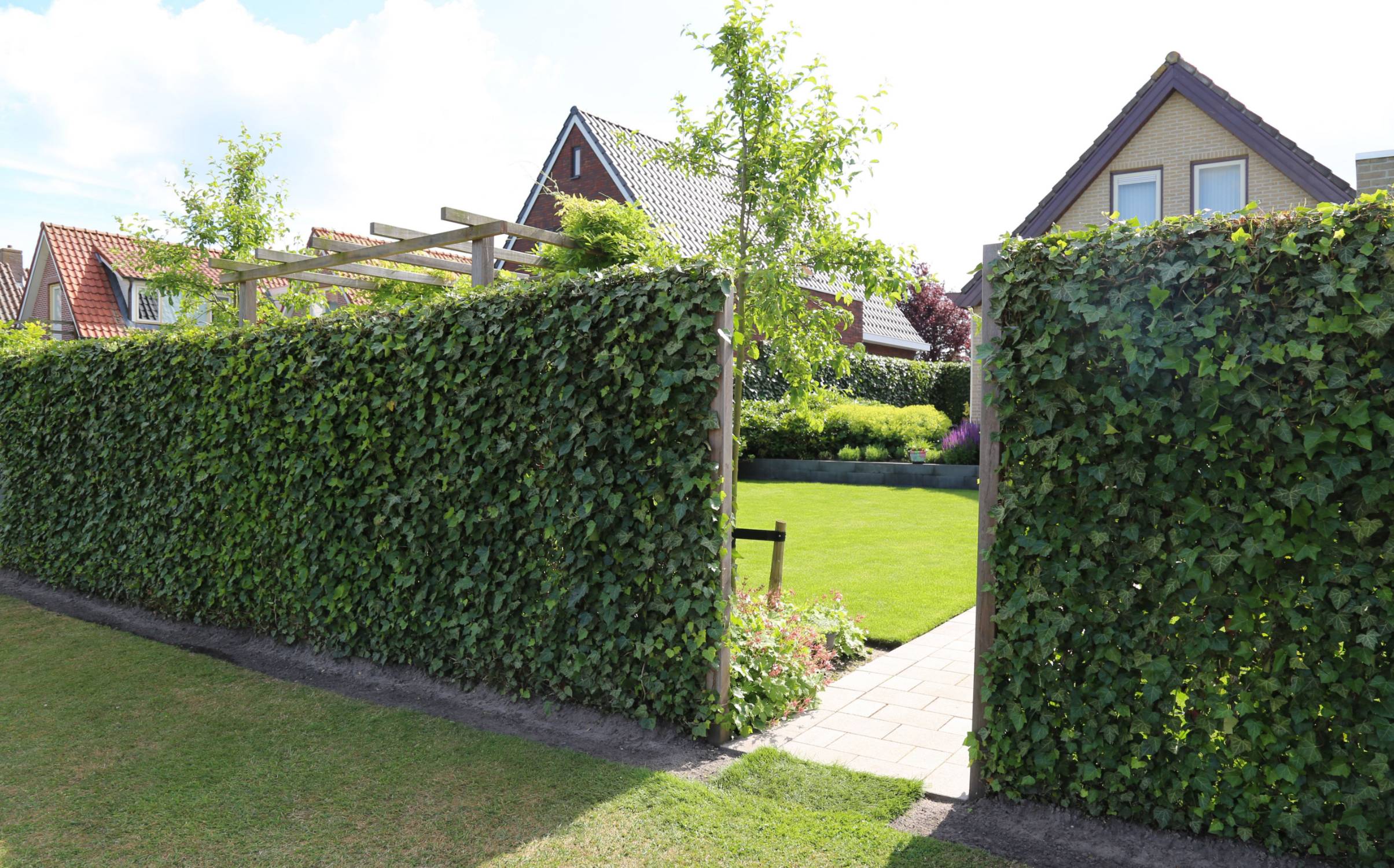

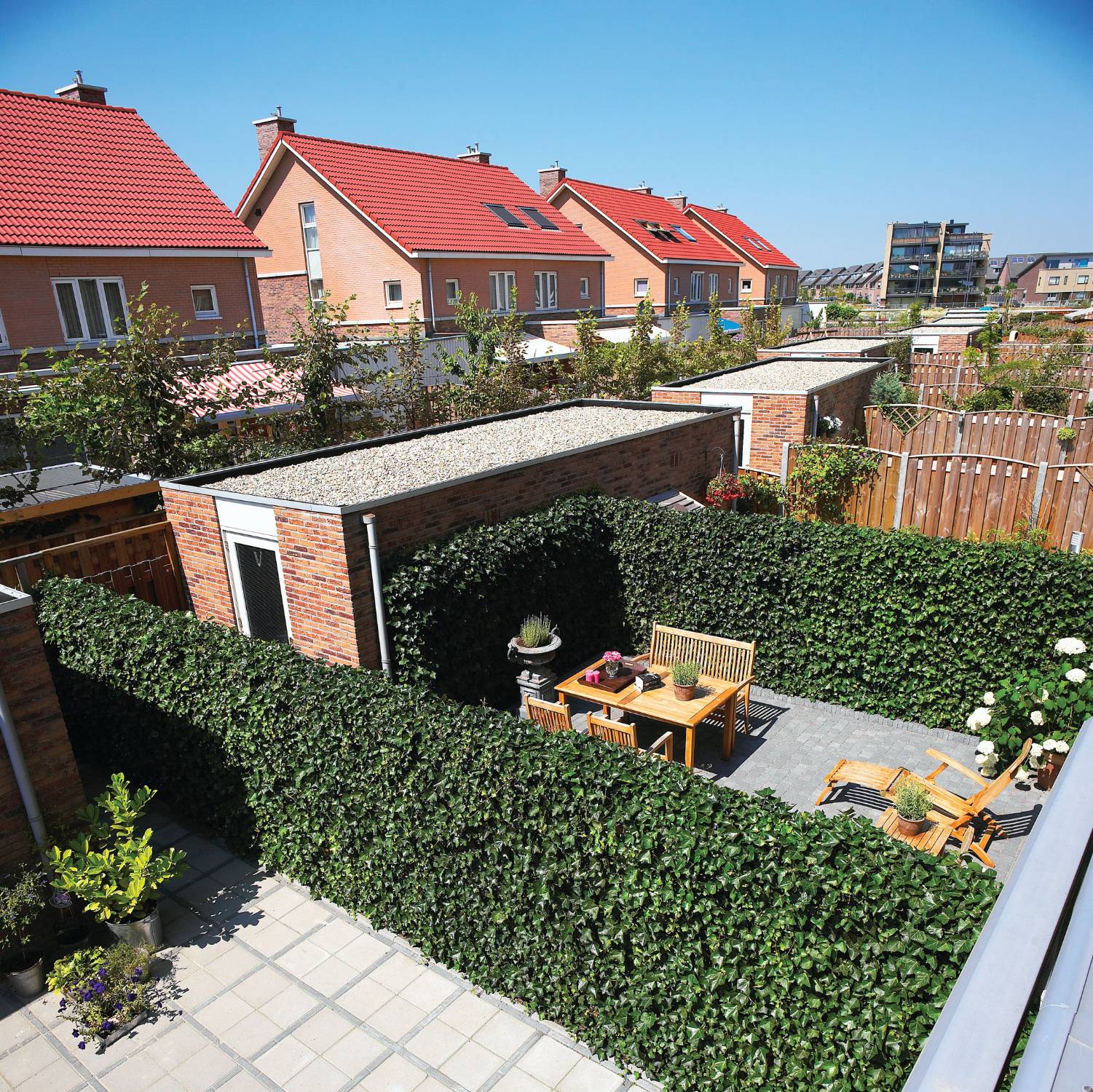

Pre-cultivated plant screen which provides perimeter security.
Suitable for use as a sustainable and secure boundary in the following areas:
For installation around gardens, the screen will need to be secured to posts. Planting trenches should be 400 mm deep.
Pre-cultivated plant screen (ivy fence/ living wall/ living fence) which provides perimeter security, and comprises a metal grid entirely covered with vegetation (in the form of either climbing or hedging plants).
Features and benefits:
Color | Green |
Finish | Galvanized |
Material | Vegetation |
Shape | Rectangle |
Length | 2000 mm |
Width | 200 mm |
Height | 1000 mm 1550 mm 1800 mm 2000 mm 2200 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
SKU Code | unknown |
Containers | Biodegradable pot. |
Planting | Not required. Carpinus betulus 'Hornbeam'. Euonymus fortunei ‘Dart’s Blanket’. Hedera helix 'Glacier'. Hedera helix 'Goldchild'. Hedera helix 'Green ripple'. Hedera helix 'White ripple'. Hedera helix 'Woerner'. Hedera hibernica. Pyracantha 'Darts red'. |
Plant supports | Hand-wound to metal grid. |
System accessories | Not required. Wall fixing brackets. Post brackets for square softwood and round metal posts. Garden doors. Grid extensions. Iron posts, round, powder green. Guidance for specification option: 48 mm diameter x 2400 mm long. Planters,GRP with matching GRP post - flat bottom. Guidance for specification option: 1345 x 500 x 500 mm. Planters, GRP with matching GRP post - pallet base. Guidance for specification option: 1345 x 500 x 500 mm. Planters, GRP with square softwood posts, flat bottom. Guidance for specification option: 1345 x 500 x 500 mm. Planters, GRP with round metal green posts, flat bottom. Guidance for specification option: 1345 x 500 x 500 mm. Planters, GRP with round metal green posts, pallet base. Guidance for specification option: 1345 x 500 x 500 mm. Planters, hardwood with matching posts. Guidance for specification option: 1444 x 550 x 440 mm. Softwood posts, 75 x 75 mm box. Guidance for specification option: Various lengths available; consult manufacturer and insert. |
Mesh panels | Electrical resistance welded galvanized steel wire, Zincalu® wires. Guidance for specification option: Grid: Galvanized steel, 5 mm-thick (except 1200 x 100 mm, which is 4 mm). |
Weight | Empty: 1250 kg; Saturated 1450 kg. Guidance for specification option: Base element. |
Height | 650 mm. Guidance for specification option: Base. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Vegetation |
Recyclability | 100%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
