>B< MaxiPro
Application

Air-conditioning, refrigeration, heat pump (refrigerant side). Not for use with ammonia or carbon dioxide (CO2).

Description

>B< MaxiPro is an innovative press system, which is quick and simple to use, providing a secure and permanent joint. Compared with traditional techniques it significantly improves productivity through greatly reduced installation time and enhanced working flexibility. >B< MaxiPro is revolutionizing pipe jointing in air-conditioning and refrigeration applications.

Features and benefits:

  • Reduced installation time and cost.
  • Secure, permanent three-point press.
  • Flame-free connection - no hot works permit required, no risk of fire.
  • No nitrogen purge.
  • Flexible, non-disruptive, clean, repeatable, professional installation system.
  • Extensively tested with a ten-year guarantee subject to training.
  • Suitable for hard, half hard and soft copper tube to EN 12735-1, EN 12735-2 OR ASTM-B280
  • Available in imperial and metric sizes.

Application:

Air-conditioning, refrigeration, heat pump (refrigerant side). Not for use with ammonia or carbon dioxide (CO2).

General information

Features

Reduced installation time and cost, secure, permanent three-point press, flame-free connection - no hot works permit required, no risk of fire, no nitrogen purge, flexible, non-disruptive, clean, repeatable, professional installation system, available in imperial and metric sizes

Material

Refrigerant grade copper body

Shape

Dependent on type

Size

1/4"–1 3/8" and 6–28 mm

WarrantyDescription

Ten years from the date of first purchase

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/10 Mains cold water supply

S90/11 Storage cold water supply

S90/110 Mains cold water supply

S90/12 Instantaneous hot water supply

S90/120 Storage cold water supply

Show more
Specification data - Copper pipeline fittings

Product Reference

>B< MaxiPro - 45° Obtuse Elbow

Available 1/4"–1 1/8".

>B< MaxiPro - 90° Bend

Available 1/4"–1 1/8".

>B< MaxiPro - 90° Street Bend

Available 3/8"–1 1/8".

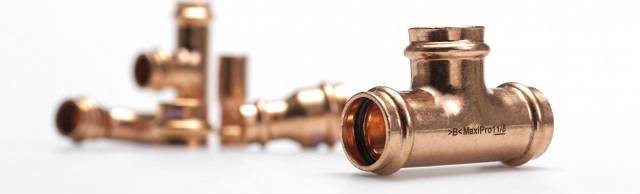

>B< MaxiPro - Equal Tee

Available 1/4"–1 1/8".

>B< MaxiPro - Fitting Reducer

Available 3/8" x 1/4" to 1 1/8" x 7/8".

>B< MaxiPro - Long Coupler

Available 1/4"–1 1/8".

>B< MaxiPro - Long Reducing Coupler

Available 3/8" x 1/4" to 1" x 5/8".

>B< MaxiPro - Long Repair Coupler

Available 1/4"–1 1/8".

>B< MaxiPro - P-Trap

Available 5/8"–1 1/8".

>B< MaxiPro - Reducing Coupler

Available 3/8" x 1/4" to 1 1/8" x 1".

>B< MaxiPro - SAE Copper Flare - Brass Nut

Available 1/4"–3/4".

>B< MaxiPro - SAE Stainless Flare - Brass Nut - Copper Washer

Available 1/4"–3/4".

>B< MaxiPro - SAE Stainless Flare - Stainless Nut - Copper Washer

Available 1/4"–1 3/8".

>B< MaxiPro - Stop End

Available 1/4"–1 1/8".

>B< MaxiPro - Straight Coupler

Available 1/4"–1 1/8".

Operating parameters

Maximum operating and abnormal pressure 48 bar

TemperatureRange

-40 to +140°C

Connections

Copper to copper

Approved tube

Copper tube conforming to EN 12735-1 or ASTM-B280

Approved oils

POE, PAO, PVE, AB and mineral oil

Burst pressure

>144 bar

Leak tightness

Helium ≤7.5 × 10^-7 Pa.m³/s at +20°C, 10 bar

Vacuum

200 µm

Standard product features

Colour:

Copper.

Features:

Reduced installation time and cost, secure, permanent three-point press, flame-free connection - no hot works permit required, no risk of fire, no nitrogen purge, flexible, non-disruptive, clean, repeatable, professional installation system, available in imperial and metric sizes.

Material:

Refrigerant grade copper body.

Shape:

Dependent on type.

Size:

1/4"–1 3/8" and 6–28 mm

Warranty description:

Ten years from the date of first purchase.

Recyclability:

Recyclable.

Country of origin:

Europe

Environmental information

Recyclability

Recyclable

Third party certifications
  • Quality Assurance - certficate : UL listed refrigerant fitting SA44668 & UL listed for field and factory installations.
