Goods Passenger Lift
Verified by manufacturer 17 days ago

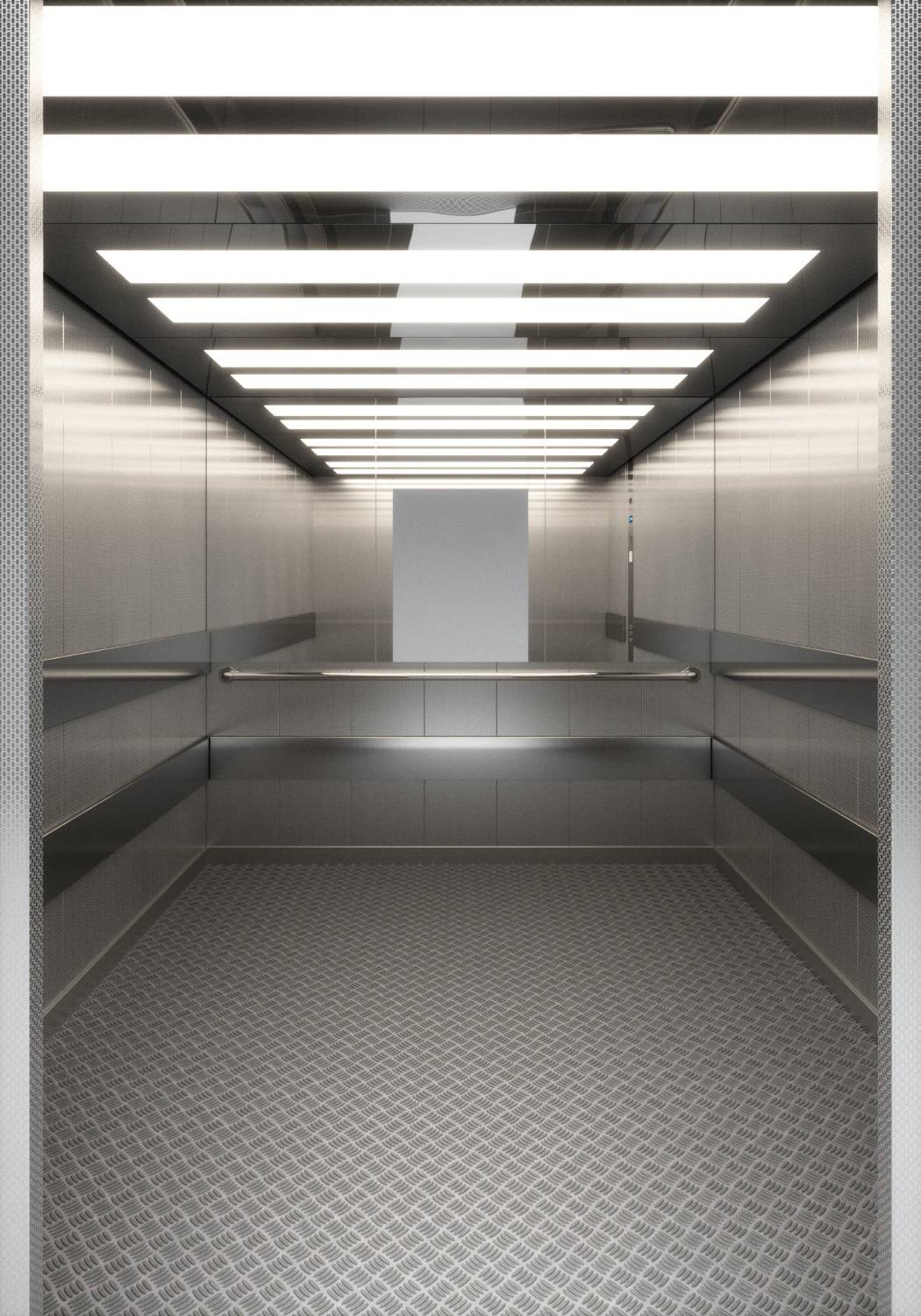

SL1275 Impact XL (17 person/ 1275 kg)
SL1275 Impact XL (17 person/ 1275 kg)
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type
smas WORKSAFE
Certificate type
Constructionline
Certificate type
Range of goods passenger lifts.
Application
Goods passenger lift.
Description
Range of goods passenger lifts.
Features and benefits:
- 1275, 1600, 1800, 2000 and 2500 kg loading available (up to 17, 21, 24, 26 and 33 passengers respectively).
- Travel up to 65 m/ 18 floors.
- Automatic opening.
- Machine room-less (MRL).
- Traction variable voltage variable frequency (VVVF) lift drive.
- Contract speed: 1.0–1.6 m/s.
- Design service available.
General information
Length | 2000 mm 2300 mm 2400 mm 2700 mm Manufacturer guidanceCar internal dimensions. |
Width | 1200 mm 1400 mm 1500 mm 1600 mm 1800 mm Manufacturer guidanceCar internal dimensions. |
Uniclass | |
CAWS | X12/350 Platform lifts X12/350 Platform lifts X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems |
Specification data - Electric passenger and goods-passenger lift systems
System performance | Manufacturer's standard: to EN 81-20; EN 81-28; EN 81-50; EN 81-58; EN 70. |
Lift type | Goods-passenger lift. |
Drive space | Machine room-less (MRL). |
Door arrangement | Single entrance (front only).Opposite front and rear entrances.Front and side entrances (adjacent). |
Traction drive | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Drive position | MRL. |
Speed control | Variable voltage variable frequency. |
Control of lift drive | Manufacturer's standard. |
Roping | |
Type | Manufacturer's standard. |
Arrangement | Manufacturer's standard. |
Factor | Manufacturer's standard. |
Compensation | Manufacturer's standard. |
Lift shaft and machine room cabling and containment | |
Cable type | Manufacturer's standard. |
Containment | Manufacturer's standard. |
Rewireable installation | Manufacturer's standard. |
Concealed installation | Required. |
Electrical identification | Manufacturer's standard. |
Capacity | 17 person (1275 kg). |
Clear opening | Guidance for specification option: Insert requirements; available between 900 x 2000 mm and 1000 x 2100 mm. Manufacturer guidanceCar entrance type: Automatic. |
Car size / Capacity (w x d) | 1200 x 2300 mm. Guidance for specification option: Car well: 1900 x 2670 mm. 1400 x 2000 mm. Guidance for specification option: Car well: 2100 x 2370 mm. |
Car | Manufacturer guidanceInsert height requirement, 2100–2200 mm. |
Shaft type | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Shaft | Manufacturer guidanceInsert requirements and drawing/ schedule reference.
|
Walls | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Flooring | Not required. Chequer floor plate. |
Ceiling | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Lighting | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Handrail | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Mirror | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Panel configuration | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Control panel finish | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Landing display | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Rails | Not required. Bumper rails. |
