Gobi - Dry Acoustic & Underfloor Heating System
Verified by manufacturer 6 months ago
C2-25
C2-25
FSC
Certificate type
Dry laid acoustic & UFH levelling solution.
Application
Suitable for use in floor separating applications and underfloor heating solution.
Description

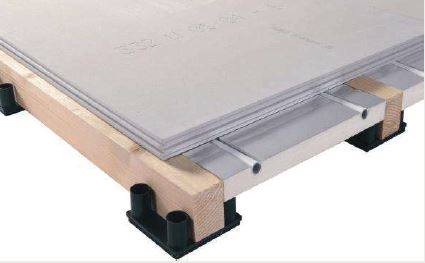

Dry laid acoustic & UFH levelling solution. Gobi provides all the benefits an underfloor heating system can deliver, with the added advantages of rapids heat transfer capabilities and acoustic performance. The dry laid system combines HiDeck structural boards capable of accepting a multitude of floor finishes.
Features and benefits:
- Levels all types of separating floors.
- Works with all pipe diameters and controls.
- Rapid response times.
- High compressive strength, accepts all finishes.
General information
Color | Grey Beige Silver |
Finish | Smooth |
Material | Gypsum High density extruded polystyrene (XPS) Aluminium Fibre Timber |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | Bespoke |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor |
Specification data - Raised access floor systems
Subfloor preparation | Manufacturer guidanceTo be dry and clean. |
System accessories | Gobi Bracket. |
Edge strips | YELOfon ES5/120. |
Layers | Manufacturer guidanceLayers one through to four.
|
Third party accreditation | NHBC, BM TRADA certified, LABC warranty, Premier guarantee. Guidance for specification option: <5 GWP, Zero ODP. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Guidance for specification option: Belgium, Germany. |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Third party certifications
FSC
FSC Certificate
Literature
Underfloor Heating
Acoustic Floor Levelling & Elevation Systems
Acoustics
Case studies
Lucent House, Hackney
