GOAT – Liquid-Applied Waterproof and Airtight Sealant for Building Fabric Protection - Liquid Applied Waterproof Coating

Name: GOAT – Liquid-Applied Waterproof and Airtight Sealant for Building Fabric Protection - Liquid Applied Waterproof Coating
Brand: Intelligent Membranes
SKU: 97PYvFz6AqKX6ZZ8Tr5S74

Verified by manufacturer 1 month ago

Intelligent Membranes

The Goat is a liquid-applied waterproof and airtight sealant for timber, masonry, metal, and roofs, sealing gaps and junctions to prevent air leakage and water ingress in new build or retrofit project

Jump to:

BOS

+44 (0)1223 208174 Website

Application

Purpose:

Create a continuous, flexible waterproof and airtight barrier with The Goat to prevent air leakage and water ingress in above- and below-ground applications.

Substrates:

Timber
Masonry
Metal
Cement boards
Roof structures (white, solar-reflective version available)
External basement walls
For full substrate guidance, see Intelligent Membranes.

Typical areas of use:

Timber & masonry sealing – Airtightness at junctions, cracks, penetrations, interfaces.
Metal & cement board protection – Weatherproof layer helping prevent moisture-related corrosion.
Roof structures – White solar-reflective coating to reduce heat gain and extend roof lifespan.

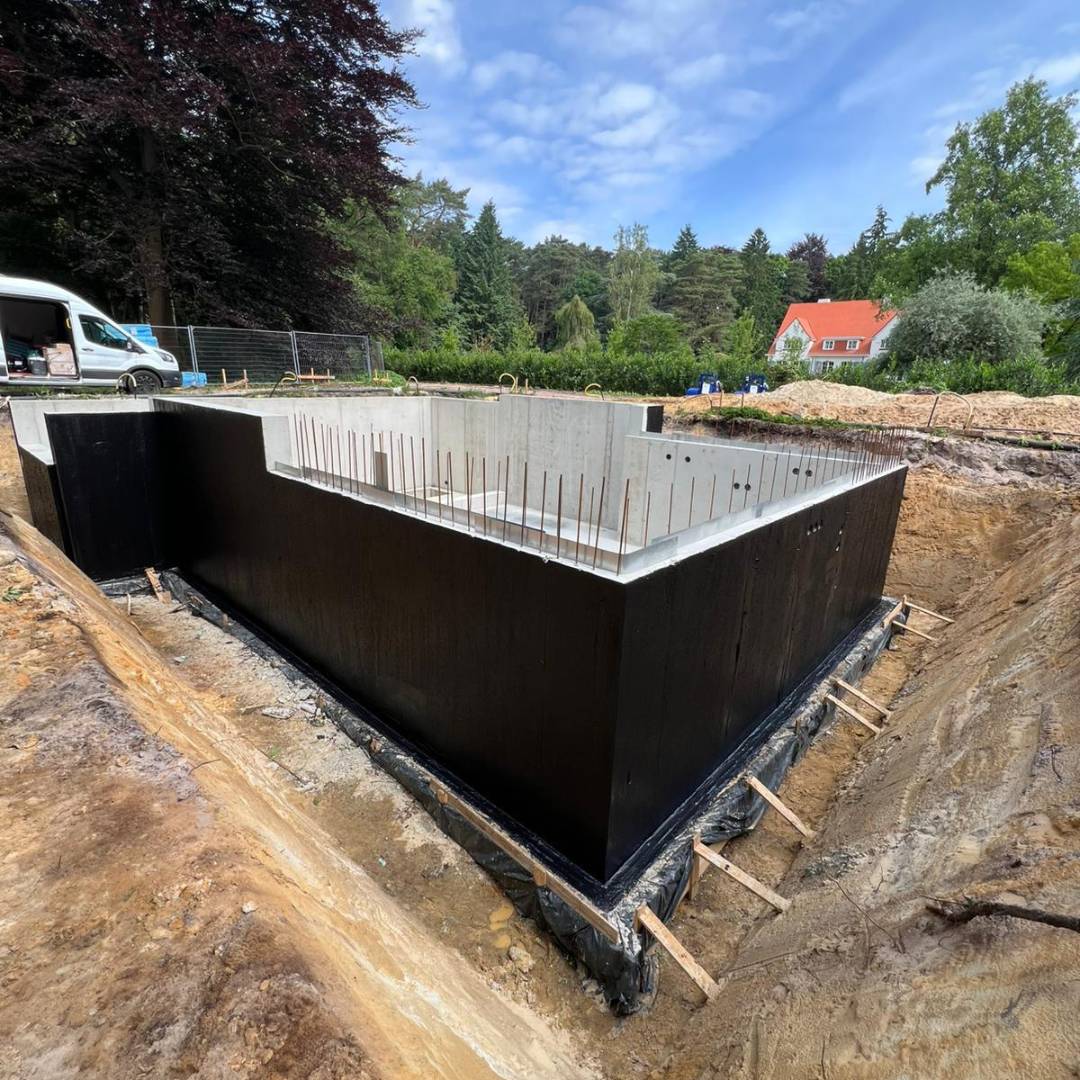

External basement walls – Robust waterproof layer resisting lateral moisture pressure.

Preparation:

Surfaces clean, dry, free from dust/grease/loose material.
Fill gaps/cracks with compatible filler.
Prime only where required, per Intelligent Membranes guidance.

Application method:

Apply by brush, roller, or spray in even coats to specified film thickness.
Apply a second coat where required; follow coverage rates in the The Goat application guidance.

Conditions:

Minimum +5 °C during application and curing; protect from rain, frost, mechanical damage until cured.

Clean-up:

Wash tools and equipment with water immediately after use.

Description

The Goat is a high-performance, liquid-applied waterproof and airtight sealant from Intelligent Membranes. It is engineered to create a seamless, flexible, and durable barrier against both air leakage and water ingress, bonding strongly to most building substrates without the need for primer. Applied by brush, roller, or spray, The Goat delivers professional-grade performance in a wide range of construction scenarios.

Typical applications include:

Timber and masonry – sealing junctions, cracks, and service penetrations to maintain airtightness and moisture control.
Metal and cement boards – providing robust weather protection and preventing corrosion from trapped moisture.
Roof structures – available in white with solar-reflective properties to reduce heat gain, improve energy efficiency, and extend roof lifespan.
External basement walls – forming a continuous waterproof barrier to protect below-ground structures from water ingress and damp.

Suitable for new build, retrofit, Passivhaus, and high-performance building projects, The Goat performs in even the harshest environmental conditions, maintaining adhesion and flexibility over time. Its water-based, solvent-free formula supports a healthier work environment and aligns with sustainable building practices.

General information

Color	Grey Black Green
Finish	Other
Material	Polymer
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_35_31_68_96 Water-dispersible polymer waterproof coatingsPrimary Pr_25_57_65_60 Plastics sheets
CAWS	J40/345 Cold-applied bonding compounds J30/130 Cold-applied damp-proofing J30/110 Cold-applied tanking J31/353 Waterproof coating J30/10 Cold-applied damp-proofing J31/47 Waterproof coating

Product range	Waterproofing Paint

Specification data - Water-dispersible polymer waterproof coatings

Classification data
Standard	To EN 1504-2.
Colour	Grey. Black. Green. White.
Form	Liquid.
Setting time	To EN 1504-2, 30–60 minutes (initial setting); 24 hours (final setting).
Adhesion	To EN 1504-2, >1 N/mm². Guidance for specification option: On concrete. Manufacturer guidance Consult manufacturer's literature for more details on adhesion to other substrates.
Density	To EN 1504-2, 1.35–1.4 kg/L.
Solids	To EN 1504-2, 100%.
Fire resistance	To EN 13501-5, Pass; BROOF (t1).
Elongation	+/- 350%.
TensileStrength	>0.7 N/mm². Stress at break to NBN EN 527-3, 1.35 MPA.
Tensile Modulus	To NBN EN 12691, 0.45 MPa.
Hardness (shore A)	40–50.
Crack bridging	To TR009, Pass; >0.75 mm. Manufacturer guidance After 500 mm.
Residual indentation	Dynamic to NBN EN 12691, pass; 10 mm and to TR006, 14 XPS. Static to TR007, 250 N (L4-P4). Manufacturer guidance Indentation.
Waterproofing	To EN 14891, Pass. Positive and negative water pressure to EN 1504-2, >2.5 bar.
Service temperature range	To EN 1504-2, -30°C to +80°C.
Application temperature	To EN 1504-2, +5 to +40°C.
Consumption (per layer applied)	To EN 1504-2, 1.5 kg/m². Manufacturer guidance Minimal consumption.
Technical characteristics, other	Resistance to sliding to TR009, Pass; <0.1 mm.
