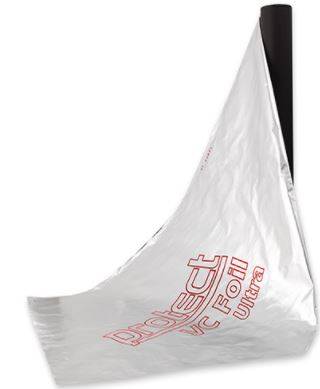

Glidevale Protect VC Foil Ultra AVCL - Vapour Control Layer

Name: Glidevale Protect VC Foil Ultra AVCL - Vapour Control Layer
Brand: BPD Building Product Design Ltd
SKU: 8UCVS85YChKC9SZqAuqvWu

Verified by manufacturer 4 months ago

1350 mm-wide rolls

BPD Building Product Design Ltd

Third party certifications:

BM Trada
Certificate type
EPD
Certificate type

Robust, highly reflective air and vapour control layer (AVCL) for wall, ceiling or floor construction.

Jump to:

+44 (0)161 905 5700 Website

Application

Suitable for timber, masonry or steel construction. Can be used on walls, ceilings and floors to significantly improve thermal performance and reduce air leakage in any construction.

Description

Protect VC Foil Ultra is a robust, highly reflective air and vapour control layer (AVCL), offering low emissivity to enhance the thermal performance of walls, ceilings and floors. Suitable for timber, masonry or steel construction, VC Foil Ultra provides strong insulating properties when installed facing into a still airspace. This ensures significant thermal and performance benefits when compared with conventional vapour control materials.

Features and benefits:

Delivers an airtight system with sealed laps.
Excellent air and vapour resistance.
Helps avoid condensation risk in accordance with BS 5250.
Available with integrated tapes for quicker installation and reliable, effective joint sealing.
Low emissivity reflective surface enhances the thermal performance of the structure when used in a still air cavity.
Corrosion and damage resistant reflective surface.
Excellent nail tear resistance.
High tensile strength, tough and durable.
Easy to cut and lightweight to handle.
BM TRADA independently certified for all applications and compliant with Building Regulations.
Class 1 surface spread of flame to BS 476-7.

General information

Color	Silver
Finish	Reflective
Material	Polypropylene Aluminium
Shape	Rectangle Guidance for specification option: Supplied as a roll
Length	50000 mm 100000 mm
Width	1500 mm 2700 mm 3000 mm

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	K21/20 Composite laminated flooring K21/10 Wood laminate flooring K10/155 Wall lining system (metal studs) K11/245 Cement bonded particleboard floating floor K11/25 Particleboard floating floor K11/20 Battened particleboard floating floor P10/60 Air and vapour control layer H11/785 Air and vapour control layer P10/310 Air and vapour control layer K11/235 Oriented strand board floating floor K11/225 Particleboard floating floor K11/215 Plywood floating floor K11/115 Battened plywood floating floor K11/135 Battened oriented strand board floating floor K11/125 Battened particleboard floating floor K11/795 Wall lining on metal framing K21/130 Battened wood floating floor K21/115 Wood laminate flooring K21/110 Wood flooring K21/146 Laminate flooring K21/111 Wood floating floor K21/120 Battened wood flooring K21/140 Battened wood laminate flooring K21/145 Composite laminate flooring K11/22 Plywood floating floor K11/15 Battened plywood floating floor K11/145 Battened cement-bonded particleboard floating floor

Product range	Reflective Insulating Membranes Vapour control layers

Specification data - Plastics sheets

Material	Aluminium foil face, triple ply construction; non-woven polypropylene core.
Purpose	Vapour control layer.
Standard	To BS 5250, BS EN 15976, BS EN 8990, BS EN 13984, BS EN 1931, BS EN 1928; BS 9250.
Performance characteristics	-
Tensile strength (minimum)	Manufacturer's standard. Guidance for specification option: 210 (N/50 mm): MD (along roll) (after ageing) - (N/50mm) to BS EN 12311-1 with mods. 205 (N/50 mm): CD (across roll) (after ageing) - (N/50mm) to BS EN 12311-1 with mods.
Tear resistance	Manufacturer's standard. Guidance for specification option: 239 N: MD (along roll) - (N) to BS EN 12310-1 with mods. 243: CD (along roll) - (N) to BS EN 12310-1 with mods.
Water vapour resistance (minimum)	4946 MNs/g / 989 Sd. Guidance for specification option: To BS EN 1931.
Fire performance	Class 1. Guidance for specification option: To BS 476-7.
Third-party certification	BM TRADA Certified.
Physical properties	-
Colour	Silver.
Dimensions	-
Thickness (minimum)	0.48 mm.
Width (minimum)	1350 mm. Guidance for specification option: Weight: 10 kg per roll (10.5 kg with integrated tape).
Roll length (minimum)	50 m. 100 m.

Thermal resistance	Manufacturer's standard. Guidance for specification option: 0.81 m²K/W: Unaged - heat flow horizontal to BS EN ISO 8990 and BS EN 15976 (incorporates printing). 0.78 m²k/: Aged - heat flow horizontal to BS EN ISO 8990 and BS EN 15976 (incorporates printing). Manufacturer guidance Independently tested by National Physical Laboratories (NPL) in a typical UK house timber frame wall cavity and verified by BM TRADA.
Emissivity	0.02 ɛ. Guidance for specification option: Unaged; to BS EN 15976. Manufacturer guidance Independently tested by a European notified laboratory.
Emissivity (aged)	0.03 ɛ. Guidance for specification option: Aged; to BS EN 15976.
Fire classification	Class E. Guidance for specification option: to BS EN 11925-2
Accessories	None. Integrated tape. Protect Reinforced Reflective Tape. Guidance for specification option: For sealing overlaps. Protect VC Foil Tape. Guidance for specification option: For sealing simple overlaps.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Polypropylene Aluminium
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.61 kg CO₂ eq/kg
