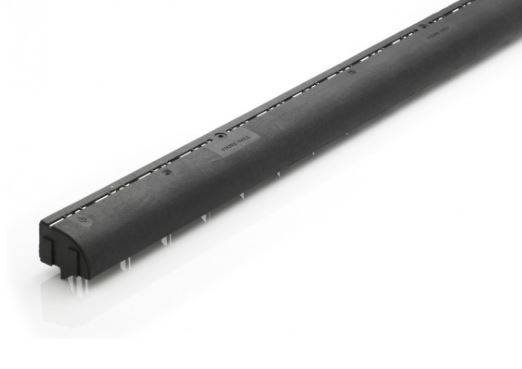

Glidevale Protect FV250 Over Fascia Ventilator - Fascia Vent

Verified by manufacturer 4 months ago

BPD Building Product Design Ltd

Glidevale Protect FV250 is an unobtrusive method of providing a guaranteed actual ventilation opening of 25 000 mm²/m ventilation when installed continuously in a range of eaves details.

Jump to:
+44 (0)161 905 5700 Website

Application

Used on the fascia below a continuous ventilation path from the eaves to the ridge as required by BS 5250. They can also be used in situations where detailing is difficult and tile or slate ventilators are inappropriate, e.g. parapet walls, secret gutters, corbelled eaves and mono pitch ridges. FV250 Ventilator can also be used for flat roofs including flat roof abutment situations.

Description

Glidevale Protect FV Fascia Ventilators are an unobtrusive method of providing ventilation in a range of eaves details, including those without a projecting soffit.


FV250 Over Fascia Ventilator installed continuously provides guaranteed actual ventilation opening of 25 000 mm²/m.


Features and benefits:

  • Internal design provides effective resistance to both driving rain and large insects.
  • Unobtrusive when fitted, hidden by gutter and roof covering.
  • Can be used to provide ventilation above or below the underlay patented gutter bracket spacers ensure correct airflow behind the gutter.
  • Lightweight and durable.
  • Quick and easy to install, with no special tools required.
  • Compatible with all roof tile clips and eaves comb fillers.
  • Modular lengths allow adjustment for fascia board inaccuracies. Position on the fascia minimises the risk of fire spread to the roof space.
  • Integral dovetail joints ensure positive and continuous interlock between units.
  • Do not affect the slating/tiling process.

General information

Color

Black

Finish

Matt

Material

Polypropylene

Shape

Crescent

Length

1000 mm

Width

49 mm

Height

32 mm

Uniclass

Pr_30_59_94_26 Eaves fascia grillesPrimary

CAWS

H65/47 Eaves

H65/345 Ventilated eaves – integrated grilles/ trays

H62/345 Ventilated eaves with integrated grilles tray

H60/345 Ventilated eaves with integrated grilles/ trays

H61/345 Ventilated eaves with integrated grilles/ trays

H60/47 Detailing at eaves

H62/47 Eaves

Specification data - Eaves fascia grilles

Style

Unobtrusive over fascia vent.

Ventilation opening

25 000 mm²/ m.

Colour

Black.

Accessories

Gutter space brackets.

Sustainability data

Country of product manufacture

United Kingdom

Material

Polypropylene
