Glidevale Protect Fulmetal RediRoll - Ridge Ventilation System

Verified by manufacturer 3 months ago

BPD Building Product Design Ltd

Glidevale Protect RediRoll is a dry fix ridge and hip ventilation system designed to meet the requirements of BS 8612, BS 5534 and BS 5250.

Jump to:
+44 (0)161 905 5700 Website

Application

Used underneath ridge and hip tiles to provide high level ventilation.

Description

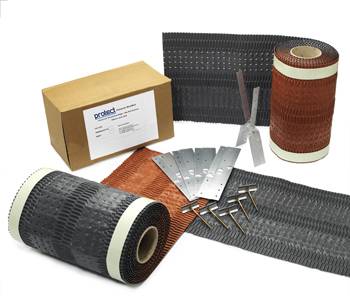

Glidevale Protect Fulmetal RediRoll is an innovative universal dry-fixed ventilated ridge and hip system. Manufactured entirely from aluminium, it overcomes the durability and weathering problems associated with other fabric based roll ridge systems. This product requires no need for plastic ridge unions which improves the ease of installation.


RediRoll is fully compliant with BS 8612 and provides the 5000 mm²/m high-level ventilation required by BS 5250. It fits the majority of ridges and hips and it can also be used on mono ridges.


Features and benefits:

  • Conforms to Dry Fix Standard BS 8612.
  • Building Regulations Approved Document C2.
  • All aluminium construction.
  • Suits all tile profiles including all ridge and hip tile designs.
  • Quick and easy to install.
  • True 5000 mm²/m ventilation.
  • Hooded ventilation design prevents water ingress.
  • Stainless steel clips provide mechanical fix and even ridge tile spacing.
  • Screw sleeve to prevent light bleed between ridges (if required).
  • Available in a handy 6 m pack in grey or terracotta, 300 mm wide.
  • Design life in excess of 30 years.

General information

Color

Grey

Copper

Finish

Other

Material

Aluminium

Shape

Rectangle

Guidance for specification option:

Supplied as a roll

Length

6000 mm

Width

300 mm

Uniclass

Pr_35_90_93_29 Dry fixing ridgesPrimary
Pr_35_90_93_28 Dry fixing hips

CAWS

H65/55 Dry hips

H65/80 Dry ventilated mono-ridges

H65/75 Dry ventilated ridges

H60/700 Dry ventilated ridges

H60/770 Dry ventilated mono-ridges

H65/505 Dry hips

H65/700 Dry ventilated ridges

H65/770 Dry ventilated mono-ridges

H60/75 Dry ventilated ridges

H60/80 Dry ventilated mono-ridges

Specification data - Dry fixing ridges

Form

Mono and duo pitch ventilated dry fixing kit.

Accessories

Not required.

Extra fixing kits.

Standard

To BS 8612, BS 5250.

Sustainability data

Material

Aluminium

Literature

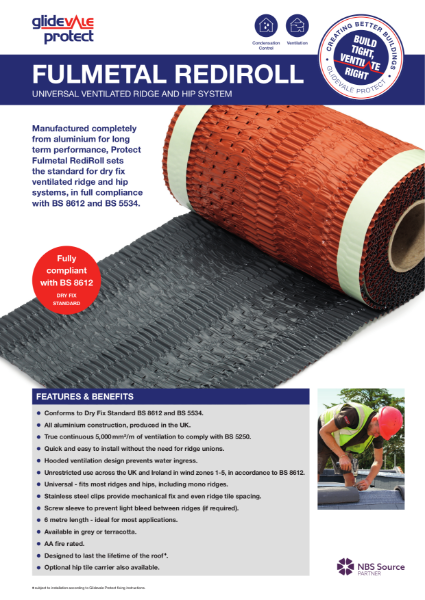

Glidevale Protect Fulmetal RediRoll Technical Literature

Glidevale Protect Fulmetal RediRoll Technical Literature

BS 5250:2021 Management of moisture in buildings

BS 5250:2021 Management of moisture in buildings

Case studies

Monoridge Project - Danbury, Essex

Monoridge Project - Danbury, Essex
