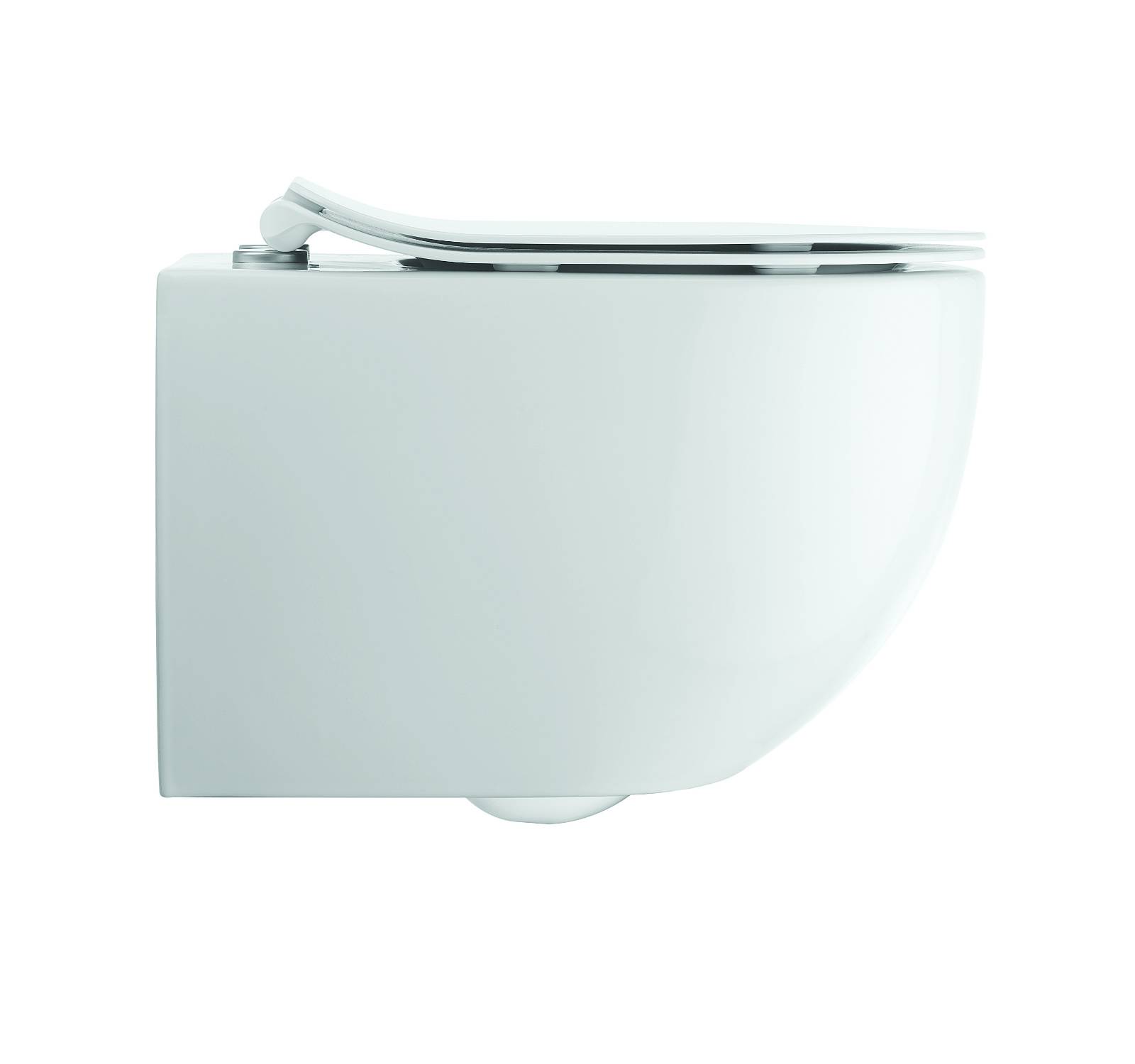

Glide II Gloss White Wall Hung Rimless Toilet & Soft Close Seat

Verified by manufacturer 4 months ago

CROSSWATER

Wall hung washdown WC pan.

Jump to:
BIM object icon
01322422743 Website

Application

  • Domestic.
  • Hotel.
  • Residential.

Description

A white, wall hung, dual flush washdown WC pan and soft close seat. The concealed surfaces directing water are fully glazed throughout.


Features and benefits:

  • Rimless.
  • Will flush at ECO-saving 3/4.5L.
  • Complete with concealed fixings.
  • Soft close seat.
  • Quick release seat.

General information

Color

White

Finish

Gloss

Material

Vitreous china

Length

365 mm

Width

345 mm

Height

510 mm

Warranty description

25 year

When registered.

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997, Class 2.

Form

Wall-mounted, washdown.

Connecting dimensions

To BS EN 33.

Pan height

345 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Gloss, white.

Water supply, outlet and seat holes

-

Outlet

Horizontal back outlet.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
