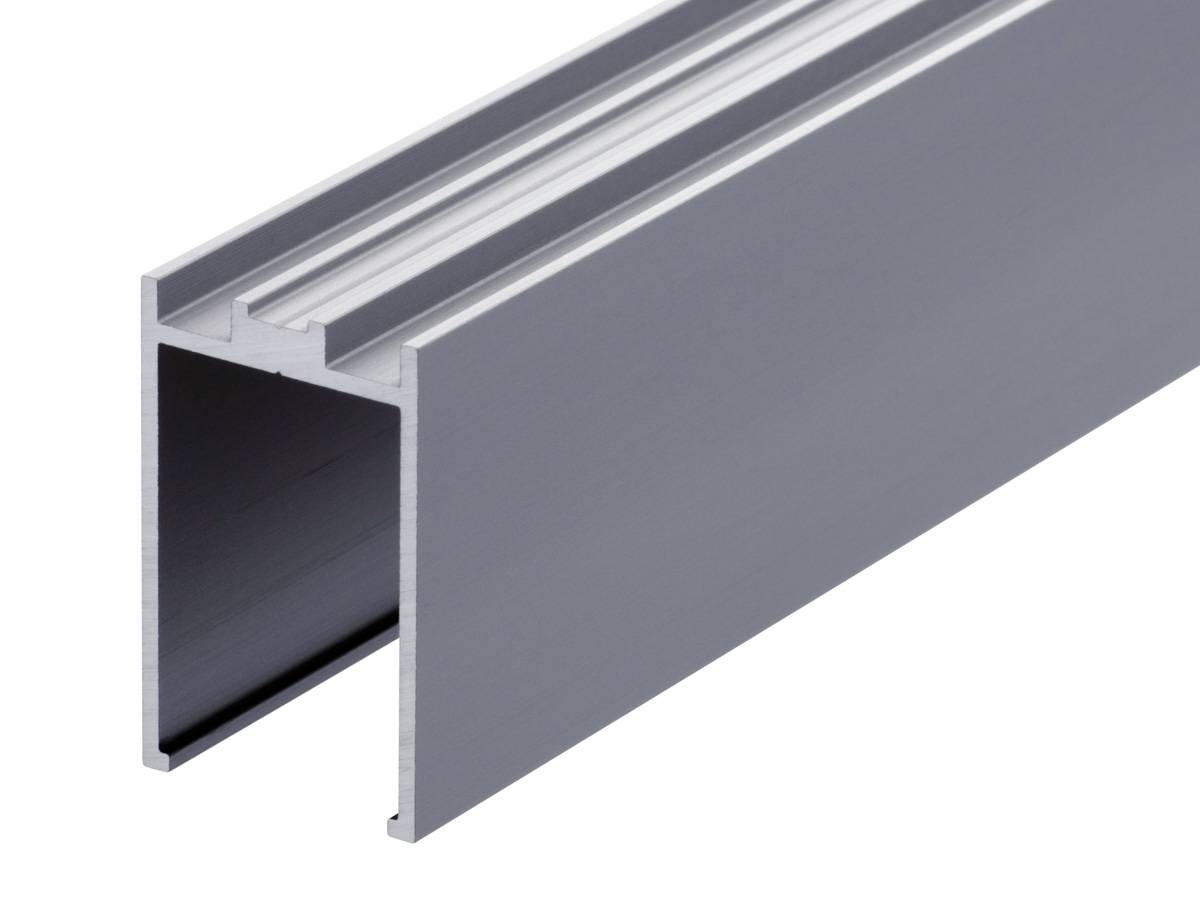

Glazing Channel 10/12 mm

Verified by manufacturer 15 days ago

GA 1030 / GLAZING CHANNEL (40 mm)

Gooding Aluminium Ltd Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

High-quality, pre-drilled and surface finished Aluminium Shuffle-Less Glazing Channels and trims.

Jump to:
+44 (0)20 8692 2255 Website

Application

Suitable in a wide variety of applications including office

interiors, retail environments to secure glass panels for use as dividers, partitions, screens and wall glazing.

Description

An extended high quality range of easy dry-fit aluminium glazing track channels, trims and associated components to suit individual glass fixing/framing requirements.


These elegant pre-drilled and surface finished channels and trims (in natural or black anodized or white powder coated finishes) are utilized in a wide variety of applications including office and retail interiors, to secure glass panels for use as dividers, partitions, screens and wall glazing.


The 10/12 mm glazing track channels provide an alternative for Shuffle or the ingenious Shuffle-Less Glazing methods.


An optional Door Pivot Pin Kit allows for easier door fixing.

General information

Color

Silver

White

Black

Finish

Powder-coated

Material

Aluminium

Shape

Other

Length

3000 mm

Width

25 mm

Height

40 mm

25 mm

Uniclass

Pr_25_71_33_92 U-profiled glass channelsPrimary

CAWS

L40/495 U-profiled single glazing

Specification data - U-profiled glass channels

Channel unit dimensions

25 x 25 mm

25 x 40 mm

Glass type

Laminated.

Toughened.

Accessories

GA 1036 / COVER STRIP.

GA 1037 / END CAP (25 mm).

GA 1038 / END CAP (40 mm).

GA 1041 / DIVIDER (10 mm glass).

GA 1042 / DIVIDER (12 mm Glass).

Show more

Sustainability data

Contains Red List materials

No

Material

Aluminium

Recyclability

Aluminium is recyclable

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

BSI Certificate of Registration

Case studies

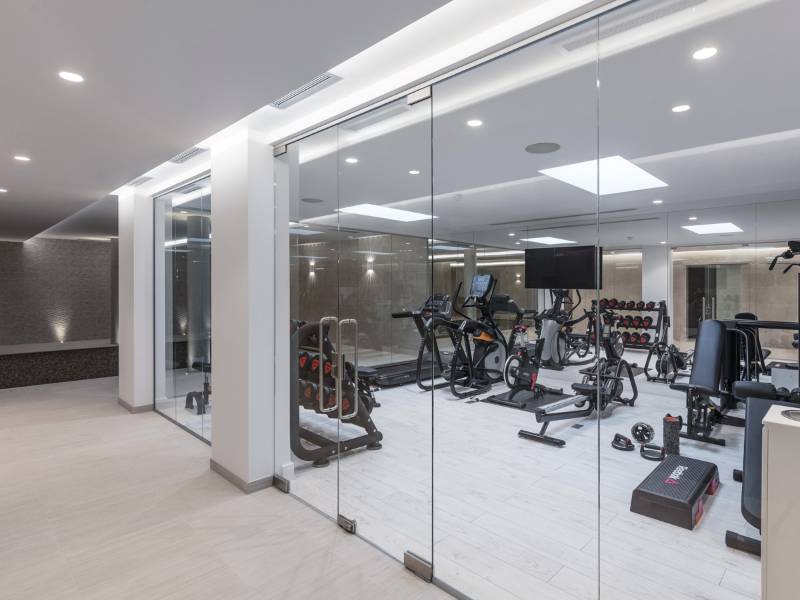

Beech Hill Glazing Channels

Beech Hill Glazing Channels
