Glazed Sonik Sliding 70 Door Single

Glazed Sonik Sliding 70 Door Single

Komfort Partitioning Ltd

SonikSlide is a top hung system which has been designed to focus on ease of installation and future product maintenance whilst ensuring high acoustic insulation is maintained.

Jump to:
+44 (0) 1403 390300 www.komfort.com

Application

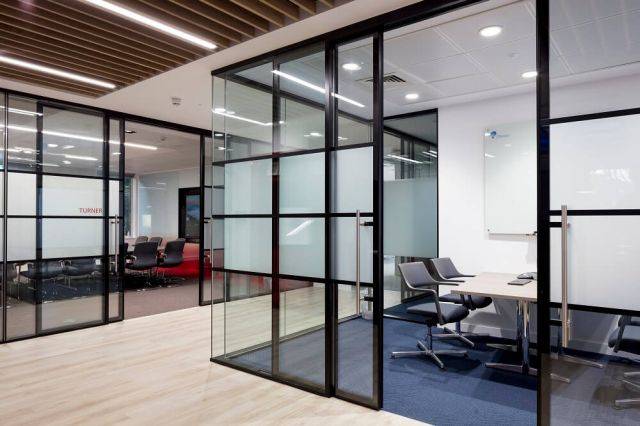

A glass door unit which can be used for interior rooms and partitions.

Description

Sonik Slide is an acoustic pocket double glazed sliding door, which can be within its own unique frameless glass partition. This is a top hung system which has been designed to focus on ease of door installation and future product maintenance, whilst ensuring a high acoustic performance is maintained.


Features and Benefits:

  • Fire resistance to BS 476-22: Non-rated.
  • Spread of flame, to BS 476-7: Class 1.
  • Easy installation.
  • High acoustic insulation.
  • Design friendly.
  • Multiple door options available.
  • Multiple thicknesses available.
  • Acoustics up to 34dB (Rw).

General information

Finish

Anodized

Polyester powder coated

Material

Glass

Aluminium

Size

3000 x 1200 mm

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels Enhanced data

Weight

120 kg.

Maximum.

Accessories

None.

Graphics.

Ironmongery

Insert requirement, consult Komfort to details.

-

Finish

Double glazed framed glass door.

Fire rating

Non-rated.

Type

Sonik double glazed pocket sliding door to 34 dB (Rw)

Finish

Kolourframe polyester powder coated.

Special anodized finish.

In-line

Bubble joint (SJ34).

Glass

Double glazed 10 mm toughened +10.8 mm acoustic laminated.

Double glazed 10.8 mm acoustic laminated + 12.8 mm acoustic glass.

Fire propagation to BS 476-6

Non-rated.

Class 0.

(England/Wales/N. Ireland).

Low risk.

(Scotland).

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library
