Electrically operated, maintenance free, white polyurethane, centre pivot roof window with additional lower fixed element for combination installations on roof pitches between 15–90°.
For combination installations on roof pitches between 15–90°.
Electrically operated, maintenance free, white polyurethane, centre pivot roof window with additional lower fixed element for combination installations on roof pitches between 15–90°.

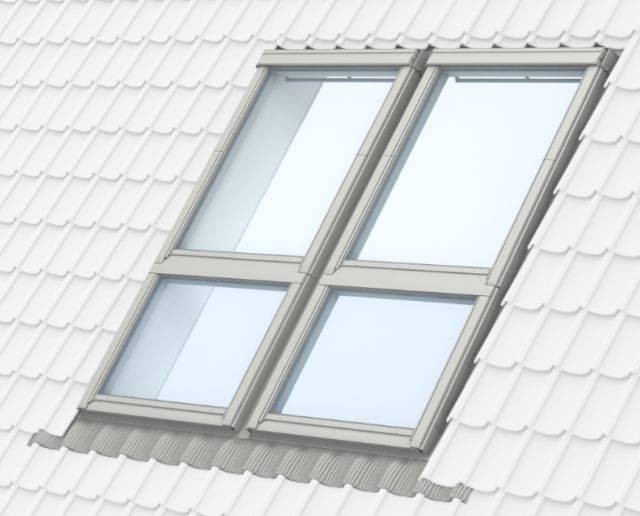

Fixed elements are installed in combination side by side to create panoramic views. The fixed window is installed directly below the roof window.
Combination flashings are modular meaning there is no limit to the overall size of the group, but the minimum distance between windows side by side is 100 mm.
Ventilation, exterior maintenance and cleaning is all via the roof window.
Features:
Operation:
Glazing:
Upper roof window:
- Code 6821U:
- Code 6621U:
- Code 7021U:
- Lower fixed window:
- Code 68:
- Code 66:
- Code 70:
Configuration:
The number of roof windows must be the same as the number of lower fixed windows; roof windows and lower fixed windows must be the same width.
Flashing:
Flashings are available in materials and finishes to match roof window cladding.
Warranty:
Application:
For combination installations on roof pitches between 15–90°.
Features | Maintenance free polyurethane moulding with white finish on timber core Fully integrated. pre-installed motor Ideal for out-of-reach areas Additional fixed elements beneath offer a great view while standing and when seated Maintenance free polyurethane moulding with white finish on timber core, fully integrated, pre-installed motor. Fully integrated, pre-installed motor, Suitable for out-of-reach areas. Additional fixed element beneath offers a great view while standing and when seated |
Finish | Internal frame and sash has a white finish on moulded polyurethane around a timber core. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0, untreated copper – Code 1, titanium zinc – Code 3 and painted aluminium – Code 8, colour |
Material | Timber core with polyurethane coated frames and aluminium cladding |
Size | Wide range of sizes to suit project requirements |
WarrantyDescription | Ten-year guarantee for window and pane. Three-year guarantee for electrical items and blinds |
Uniclass 2015 | |
CAWS | L10/480 Roof windows L10/50 Roof windows |
Product Reference | GGU INTEGRA® electric, white polyurethane, centre-pivot roof window with GIU sloping fixed windows below, combination installation |
Whole window U-value | 1.0 W/m²K - 1.3 W/m²K depending on product option |
Frame | - |
Finish as delivered | - |
Internal frame and sash | White polyurethaneCode 0 |
External cladding | Grey aluminium; colour reference NCS S-7500-NCode 0 Untreated copperCode 1 Titanium zincCode 3 Painted aluminiumCode 8 |
Glazing or infill | - |
Composition | Argon filled cavity or Krypton filled cavity depending on product option |
Hardware | Flashings are available in materials and finishes to match roof window cladding |
Operation | - |
Type | Electrically operatedSimple, convenient wall switch to operate the windows. Rain sensor closes window automatically in the event of rain |
Electrical supply | Pre-installed motor |
Fixing | - |
Fixing features | Insulation collar, underfelt collar and vapour barrier collar available for installation |
Accessories | NoneVELUX ACTIVE with NETATMOCode KIX 300 - Smart sensor based operation and smartphone control. Upper roof windows only. Battery Back-UpCode KLB 100 - Upper roof windows only. |
Roof pitch | Insert requirements. |
Number of roof windows | Insert requirements. |
Number of fixed lights | Insert requirements. |
Distance between side frames | 100 mmStandard frame gap. 120 mm140 mm160 mm |
Window | - |
Roof window code | GGU MK04Standard size 780 mm wide x 978 mm high, effective daylight area 0.47 m². GGU MK06Standard size 780 mm wide x 1178 mm high, effective daylight area 0.59 m². GGU MK08Standard size 780 mm wide x 1398 mm high, effective daylight area 0.72 m². GGU PK08Standard size 942 mm wide x 1398 mm high, effective daylight area 0.92 m². GGU PK10Standard size 942 mm wide x 1600 mm high, effective daylight area 1.07 m². GGU SK06Standard size 1140 mm wide x 1178 mm high, effective daylight area 0.95 m². GGU UK04Standard size 1340 mm wide x 978 mm high, effective daylight area 0.91 m². GGU UK08Standard size 1340 mm wide x 1398 mm high, effective daylight area 1.40 m². GGU MK10Non-standard size 780 mm wide x 1600 mm high, effective daylight area 0.85 m². GGU PK06Non-standard size 942 mm wide x 1178 mm high, effective daylight area 0.75 m². GGU SK08Non-standard size 1140 mm wide x 1398 mm high, effective daylight area 1.16 m². |
Fixed lower window code | GIU MK34Standard size 780 mm wide x 920 mm high; effective daylight area 0.44 m². GIU PK34Standard size 942 mm wide x 920 mm high; effective daylight area 0.56 m². GIU SK34Non-standard size 1140 mm wide x 920 mm high; effective daylight area 0.70 m². GIU UK34Non-standard size 1340 mm wide x 920 mm high; effective daylight area 0.85 m². |
Glazing | - |
Upper roof window | 6821U6.8 mm laminated inner pane with low-e coating; 12 mm Argon filled cavity; 3 mm heat strengthened mid pane with low-e coating; 12 mm Argon filled cavity; 4 mm toughened outer pane with easy to clean and low-e coatings. 6621U6.8 mm laminated inner pane with low-e coating; 12 mm Krypton filled cavity; 3 mm heat strengthened mid pane with low-e coating; 12 mm Krypton filled cavity; 4 mm toughened outer pane with easy to clean and anti-dew coatings. 7021U6.8 mm laminated inner pane with low-e coating; 15 mm Argon filled cavity; 4 mm toughened outer pane. |
Lower fixed window | 686.8 mm laminated inner pane with low-e coating; 12 mm Argon filled cavity; 3 mm heat strengthened mid pane with low-e coating; 12 mm Argon filled cavity; 4 mm toughened outer pane with easy to clean and low-e coatings. 666.8 mm laminated inner pane with low-e coating; 12 mm Krypton filled cavity; 3mm heat strengthened mid pane with low-e coating; 12 mm Krypton filled cavity; 4 mm toughened outer pane with easy to clean and anti-dew coatings. 706.8 mm laminated inner pane with low-e coating; 15 mm Argon filled cavity; 4 mm toughened outer pane. |
Blind | - |
Upper roof window | Not requiredBlackout blind – Code DMLLight dimming energy blind – Code FMCPleated blind – Code FMLRoller blind – Code RML |
Colour | Not applicableAs schedule ___Refer to VELUX Blinds and Shutters brochure for available colours and patterns. |
Lower fixed window | Not requiredBlackout blind – Code DMLRequires KUX 100 Control unit. Light dimming energy blind – Code FMCRequires KUX 100 Control unit. Pleated blind – Code FMLRequires KUX 100 Control unit. Roller blind – Code RMLRequires KUX 100 Control unit. |
Colour | Not applicableAs centre-pivotAs schedule ___Refer to VELUX Blinds and Shutters brochure for available colours and patterns. |
Energy efficient installation | Insulation Collar – Code BDX 2000Not compatible with E*N and E*J flashings. Includes BFX. Underfelt Collar – Code BFX 1000Vapour Barrier Collar – Code BBX 0000 |
Flashing | EKL + ETLFor standard installation into slate up to 8 mm thick; root pitch 15–90° EKW + ETWFor standard installation into tiles up to 120 mm in profile; roof pitch 15–90°. Also for interlocking slate, thatch and profile sheeting. EKN + ETNFor recessed installation into slate up to 8 mm thick; root pitch 20–90°. EKJ + ETJFor recessed installation into tile up to 120 mm thick; root pitch 20–90°. ZWCFor standard installation where an on-site flashing is required; roof pitch 15–90°. |
Standard product features | Colour: External Colour NCS S-7500-N; Internal Colour, white polyurethane NCS S 0500-N. Features: Maintenance free polyurethane moulding with white finish on timber core, fully integrated, pre-installed motor. Fully integrated, pre-installed motor, Suitable for out-of-reach areas. Additional fixed element beneath offers a great view while standing and when seated. Finish: Internal frame and sash has a white finish on moulded polyurethane around a timber core. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0, untreated copper – Code 1, titanium zinc – Code 3 and painted aluminium – Code 8, colour. Material: Timber core with polyurethane coated frames and aluminium cladding. Size: Wide range of sizes to suit project requirements. Warranty description: Ten-year guarantee for window and pane. Three-year guarantee for electrical items and blinds. |
