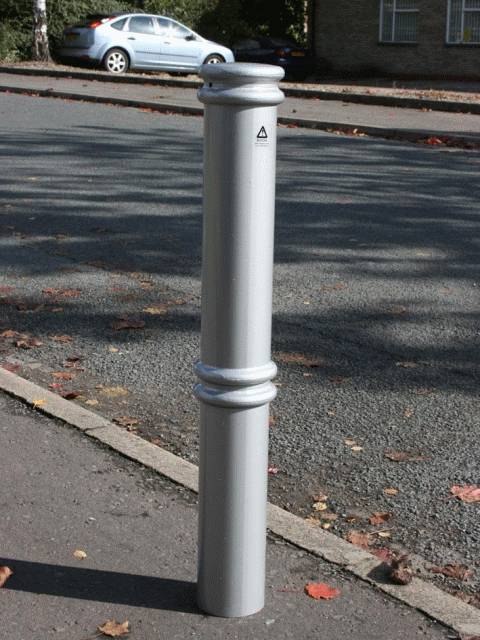

GFC3500 Morpeth Bollard
Description

Elegant but functional in its design the GFC3500 (Morpeth) ornamental carbon steel bollard is constructed using carbon steel, galvanized to ensure its longevity. Caps and rings manufactured from impact resistant malleable cast iron are welded on to the steel body to complete the design.

Features:

  • Main construction of galvanized carbon steel tube.
  • Cap and rings of high grade, impact resistant, malleable cast iron, for ornamental furnishing.
  • Ground fixing of ragged bollards is assisted by ground fixing spikes.
  • Available with flanges for bolting down (bolts available extra).
  • Removable versions include cast iron ground socket and are lockable by padlock.

General information

Features

Main construction of galvanized carbon steel tube

Cap and rings of high grade, impact resistant, malleable cast iron, for ornamental furnishing

Ground fixing of ragged bollards is assisted by ground fixing spikes

Available with flanges for bolting down (bolts available extra)

Removable versions include cast iron ground socket and are lockable by padlock

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/196 Removable bollards

Q50/30 Street furniture

Specification data - Carbon steel bollards

Product Reference

GFC3500 Morpeth Bollard, flanged

GFC3500 Morpeth Bollard, ragged (138120301)

GFC3500 Morpeth Bollard, removable (138120307)

Reinforcement

Not required

Required

Standard product features

Height:

  • Above ground: 900 mm.
  • Below ground: 400 mm.

Outside diameter:

114 mm.

Wall thickness:

3 mm.

Weight:

  • Ragged: 12.7 kg.
  • Lift out: 13.7 kg.

Product Options

Colour/ Finish:

Galvanized finish as standard. Most RAL and BS colours are available as painted finishes – contact manufacturer for further details. Polyester coloured coatings are available by special order.
