Geo Illuminated Bollard
Description

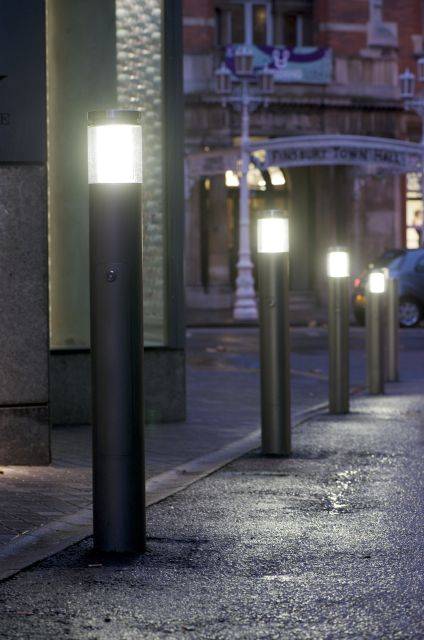

The Geo illuminated bollard illuminates walkways or planted areas whilst providing guidance for pedestrians and motorists.

The Geo bollard is perfect for any project requiring high design and exceptional material quality to enhance an urban environment. The Geo 'shadow gap' design theme continues through the bollard, to enhance the sense of place and identity, with the rest of the suite of coordinated street furniture. This enables a consistent project signature to be established and helps minimise visual clutter.

Benefits:

  • 1.4401 (316) grade stainless steel bead blasted cap and brushed body for a robust yet attractive aesthetic.
  • A variety of options including refractor technology for compact fluorescent lamps and a double cone mirror optic for metal halide.
  • Long-life LED illuminated and marker offer a maintenance friendly 'fit and forget' solution.
  • Two diameter options available.

General information

Uniclass 2015

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Specification data - Stainless steel bollards

Product Reference

GE-BL-00014

140 mm MTR 18 W TC-T bollard.

GE-BL-00015

140 mm MTR 26 W TC-T bollard.

GE-BL-00221

140 mm 26 W dual cone bollard.

GE-BL-00016

204 mm dual cone 42 W TC-T bollard.

GE-BL-00017

204 mm dual cone 70 W CDM-ET bollard.

GE-BL-00019

204 mm MTR 42 W TC-T bollard.

Standard product features

Height:

1100 mm.

Colour:

Natural stainless steel.

Door size (w x h):

500 x 100 mm.

Door height from FGL:

305 mm.

IP rating:

IP65.

Illuminated section height:

100 mm.

Base section height:

900 mm.

Mounting type:

Buried flange.

Nominal voltage:

230 V (50 Hz).
