Genesis Bollard / Barrier

Artform Urban Furniture Limited Third party certifications:
  • ISO 14001:2015

    ISO 14001:2015

    Certificate type

  • ISO 9001:2015

    ISO 9001:2015

    Certificate type

Vertical modular bollards/ barriers.

Jump to:
+44 (0)1625 877554 Website

Application

Modular demarcation.

Description

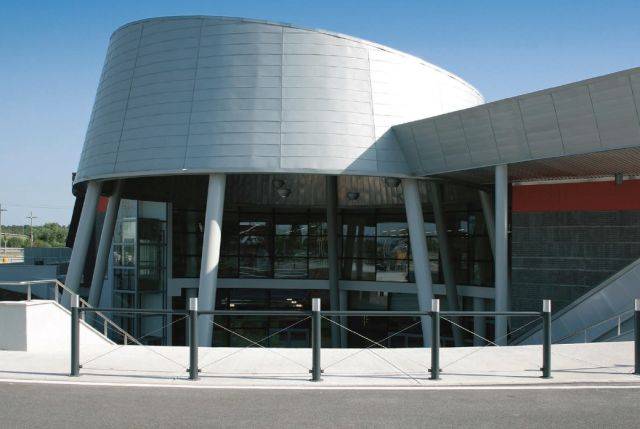

Vertical modular bollards/ barriers from Metalco's Stile collection.


Features and benefits:

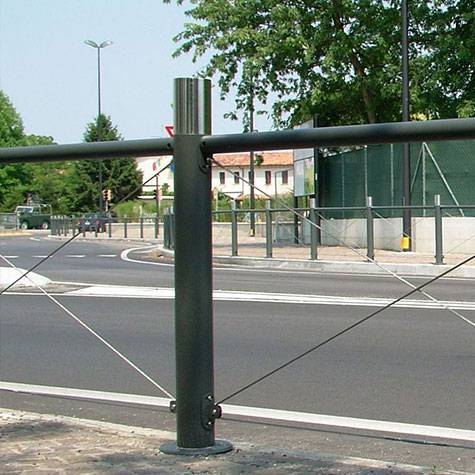

  • The lower part is galvanized and polyester powder-coated steel, and the upper part is 150 mm-high, electro-polished stainless steel.
  • The vertical post elements are solidly connected together at 1500 mm centres by two 50 mm-diameter galvanized and polyester powder-coated steel tubes, mechanically fixed with the appropriate fixings.
  • The posts are further connected via a 5 mm-diameter stainless steel rope arranged in an X-shape in-between the two supports.
  • Can be assembled on inclined levels up to the following values: 8% slope, minimum curve radius: 11 metres.

General information

Color

Black

Silver

Finish

Powder-coated

Material

Steel

Stainless steel

Shape

Circle

Length

76 mm

102 mm

168 mm

Width

76 mm

102 mm

168 mm

Height

700 mm

800 mm

1000 mm

Uniclass

Ss_25_14_63_51 Metal post and rail fencing systemsPrimary

CAWS

null Proprietary protective barriers

Product range

Bollards and barriers

Specification data - Metal post and rail fencing systems

Posts

Steel/ stainless steel posts, 1000 x 102 mm.

Steel/ stainless steel posts, 700 x 102 mm.

Steel/ stainless steel posts, 800 x 76 mm.

Steel/ stainless steel posts, 600 x 168 mm.

Post foundations

Anchors (steel bolts).

Embedded in concrete.

By concreting the extension 150 mm deep into the ground.

Rails

Steel tubes with stainless steel ropes in 'X' arrangement.

Standard. Posts are connected at 1500 mm centres by 50 mm-diameter, galvanized and polyester powder-coated steel tubes, mechanically fixed with the appropriate fixings and a 5 mm-diameter stainless steel rope, arranged in an "X" in between the two supports.

Other.

Insert requirements.

Colour/ Finish

Lower section of posts, and connecting rails (if specified); hot-dip galvanized and polyester powder coated.

1500 mm-high upper section of all posts are electropolished stainless steel.

Powder-coated steel, colour.

Consult manufacturer and insert requirements.

Insert separate requirements for rails (steel tubes) if appropriate.

Environmental information

Country of product manufacture

Italy

Literature

Metalco Bollards and Barriers

Metalco Bollards and Barriers

Third party certifications

ISO 14001:2015

ISO 14001:2015

ISO 14001: 2015

ISO 9001:2015

ISO 9001:2015

ISO 9001: 2015
