This product is no longer available

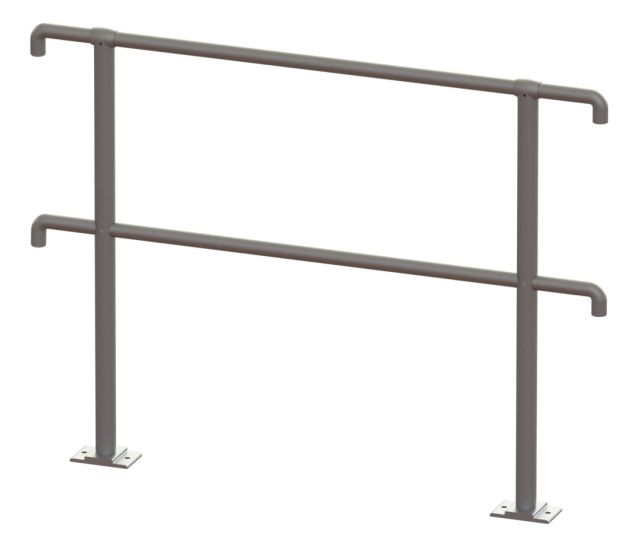

Industrial handrails and balustrade is designed for endurance in the most demanding environments, from the atmospheric conditions of factories, chemical plants and water treatment works to the harsh exposure of lighthouses and rooftops.

Genesis balustrade features environmentally friendly design with modular construction that minimises noise, waste and energy consumption. Along with being a third of the weight of steel for easy installation and manoeuvring, the aluminium is DDA compliant, corrosion-free and fully recyclable with a high residual value.

Balustrades and handrails are available mill finished and with powder coated handrail options for visual contrast. Components are designed for ease of assembly utilizing mechanical fasteners with smooth top handrail connections to provide tactile comfort. Optional kicking plates and fixings are available.

Features and benefits:

  • Fully recyclable with high residual value.
  • Corrosion-free.
  • DDA compliant.
  • Available as mill finished or powder coated.
  • 38 mm diameter top rail.
  • An easy-to-assemble and cost-effective solution.
  • Up to 1.7 m stanchion centres.
  • Manufactured in accordance with BS EN 4122-3.
  • Includes a lifetime guarantee.


Ideal for safety railing, industrial guard rails, adjustable ramp handrails, roof edge protection, standing-seam roof edge protection, access walkways, mezzanine floors and ventilation grilles.

General information

Aluminium alloy extrusion to BS EN 755-9 and aluminium LM6 pressure die castings

Uniclass 2015
Pr_25_30_36_03 Aluminium handrailsPrimary
Specification data - Aluminium handrails
Product Reference

Genesis Industrial Balustrade

Loading requirement

0.36 kN/m

0.74 kN/m

Handrail finish/ colour


Aluminium (50)

Black (89)

Blue (83)

Bronze (76)

Burgundy (81)

Champagne (70)

Chromium (78)

Dark Silver (56)

Graphite (77)

Green (85)

Red (80)

Yellow (87)



Special order

Insert requirement.



Kick plates

Structural fixings

Standard product features


Aluminium alloy extrusion to BS EN 755-9 and aluminium LM6 pressure die castings.

Top rail size:

38 mm diameter tube with 3.25 mm thick wall.


  • Size: 50 mm diameter tube with 6.35 mm thick wall.
  • Finish: Mill.
