Description

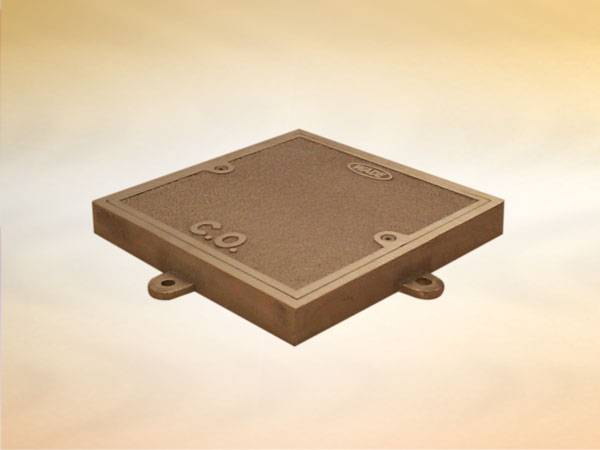

A range of larger access covers for use independent of gullies and traps.

General information
Size

R311: 186 mm dia. x 25 mm high

R411: 178 x 178 x 23 mm high

R412: 229 x 229 x 25 mm high

R511: 178 x 178 x 29 mm high

R512: 229 x 229 x 29 mm high

R611: 138 mm dia. x 48 mm high

R621: 138 mm dia. x 48 mm high

R801: 205 x 205 x 30 mm high

Uniclass 2015
Floor gullies (Pr_65_52_24_31)Primary
Specification data - Floor gullies
Product Reference

General purpose access cover

Access covers

R311, 186 mm dia nickel bronze unsealed access cover with secured removable top

R411, 178 x 178 mm nickel bronze unsealed access cover with secured removable top

R412, 229 x 229 mm nickel bronze unsealed access cover with secured removable top

R511, 178 x 178 mm stainless steel cover with nickel bronze frame unsealed access cover with secured removable top designed for use in a wall

R512, 229 x 229 mm stainless steel cover with nickel bronze frame unsealed access cover with secured removable top designed for use in a wall

R611, 138 mm dia nickel bronze sealed access cover with top recessed for flooring material

R621, 138 mm dia nickel bronze sealed access cover

R801, 205 x 205 mm nickel bronze sealed access cover with secured top recessed for flooring material

Standard product features

Size:

  • R311: 186 mm dia. x 25 mm high.
  • R411: 178 x 178 x 23 mm high.
  • R412: 229 x 229 x 25 mm high.
  • R511: 178 x 178 x 29 mm high.
  • R512: 229 x 229 x 29 mm high.
  • R611: 138 mm dia. x 48 mm high.
  • R621: 138 mm dia. x 48 mm high.
  • R801: 205 x 205 x 30 mm high.

Product Options

Finish:

  • Polished finish, suffix P.
  • Polished bronze (gunmetal), suffix PB. Check availability.
