Geberit urinal flush control with pneumatic flush actuation, Type 20 (ex. Type 30) flush plate, square
Verified by manufacturer 7 days ago

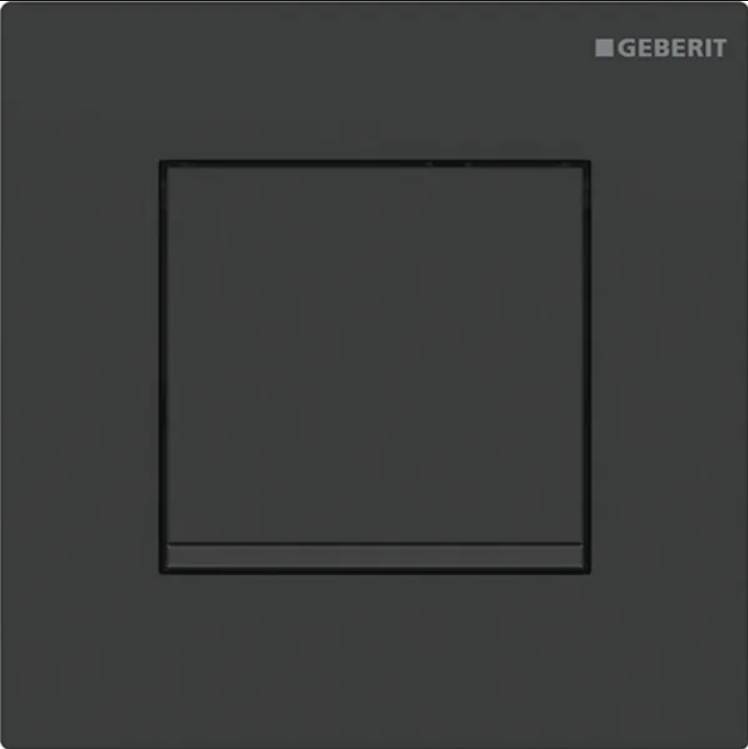

116.017.16.1 - Black Matt (Plate and Button) / Black (Stripe)
116.017.16.1 - Black Matt (Plate and Button) / Black (Stripe)
Geberit urinal flush control with pneumatic flush actuation, type 20 flush plate.
Application
- For manual flush actuation of urinals.
- For Geberit frames for urinal with front actuation.
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009).
Description

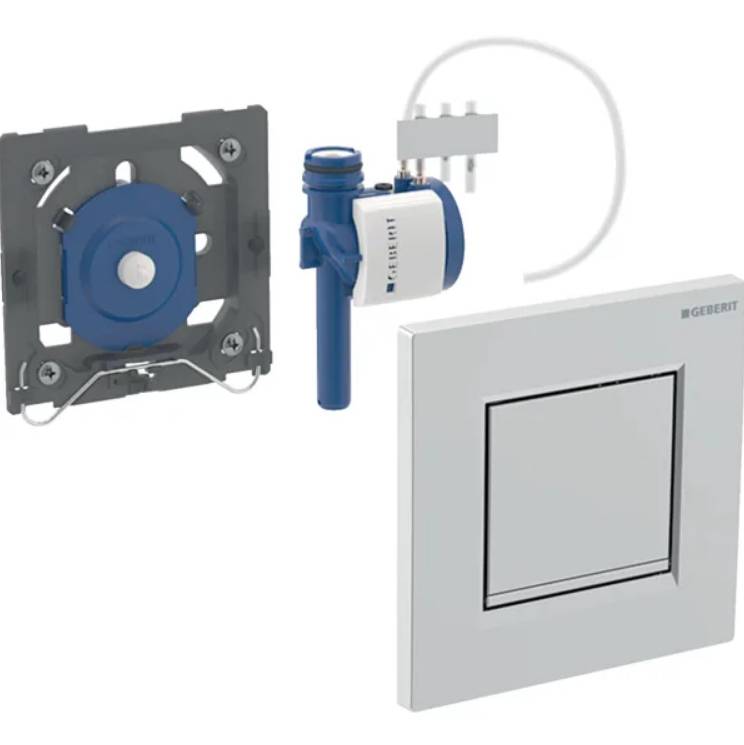

Geberit urinal flush control with pneumatic flush actuation with type 20 (ex. type 30) flush plate, square.
Features and benefits:
- Flush plate with securing bar.
- Flush time setting with air nozzles (pneumatic).
- Low flush actuation force.
- Short stroke movement.
- Flush actuation when the actuator button is released.
- Flush volume can be reduced to 0.5 L per flush with regulating screw of installation set.
General information
Color | Black Silver White |
Finish | Matt Gloss Chrome |
Material | Plastic |
Shape | Square |
Length | 130 mm |
Width | 130 mm |
Height | 9 mm |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns S90/690 Flush control devices |
SKU Code | 116.017.16.1, 116.017.KH.1, 116.017.KJ.1, 116.017.KK.1, 116.017.KM.1 |
Specification data - Flush control devices
Flush volume | 0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter). |
Flush rate | Flush time, adjustment range 4 / 8 / 12 s. |
Materials | |
Body | Plastic. |
Finish and colour | Plate and button: black matt coated, easy-to-clean coated. Design stripes: black. |
Operation | Push-button. |
Controller | Surface-mounted. |
Sustainability data
Material | Plastic |
