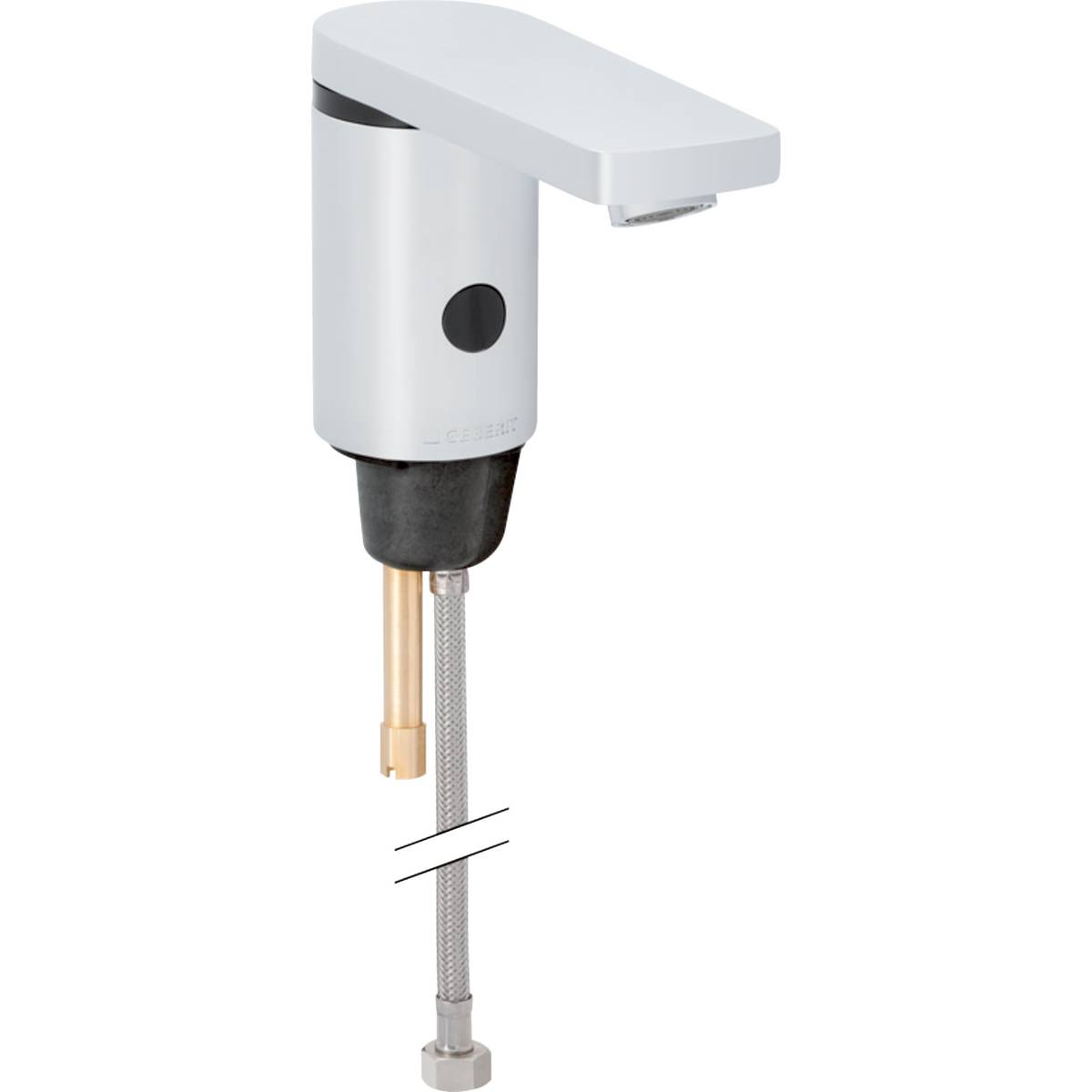

Geberit Type 186 washbasin tap, battery operation - Washbasin taps

Verified by manufacturer 6 days ago

116.236.21.1 bright chrome-plated, without mixer

Geberit Sales Ltd Variant:

Chrome-plated washbasin tap, battery operation.

Jump to:
+44 (0)1926 516800 Website

Application

  • For extracting tap water.
  • For public and semipublic areas.
  • For installation in washbasins or washtops.
  • For connecting cold and hot water (only for model with mixer).
  • For connecting cold or mixed water (only for model without mixer).
  • For use with stainless steel bowls.
  • Model without mixer suitable for combination with continuous flow heater, see technical data sheet "Washbasin taps with continuous flow heaters.

Description

Chrome-plated washbasin tap, battery operation.

Features and benefits:

  • Three models: without mixer; with mixer; with mixer and handle.
  • Automatic flush actuation.
  • Infrared user detection.
  • Self-adjusting IR sensor.
  • Vandal-resistant.
  • Volume flow control via tap aerator.
  • Temperature presetting via mixer (only for model with mixer).
  • Not possible to set just hot water or just cold water (only for model with mixer).
  • Power supply by battery.
  • Can be refitted for mains operation.
  • Battery sufficient to activate the water flow 200 000 times.
  • Warning when the battery is low.
  • Economy mode can be set.
  • Water saving due to quick-response two-beam scanning technology.
  • Functions can be set and queried with the Geberit Service Handy.
  • Device settings and operation with mobile device via integrated Bluetooth® interface.
  • Compatible with Geberit Control App.
  • Wirelessly connectable with Geberit Gateway via Bluetooth®.
  • Compatible with Geberit Connect.
  • Water saver program can be set.
  • Interval flush program can be set.
  • Continuous flush can be set individually.
  • Flush actuation can be deactivated.
  • With integrated check valve.

General information

Color

Silver

Finish

Chrome

Gloss

Material

Brass

Shape

Other

Length

340 mm

Manufacturer guidance

Tap only.

Width

96 mm

99 mm

Height

245 mm

Manufacturer guidance

Tap only.

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/341 Vanity tops with formed washbasins

N13/335 Washbasins

N13/30 Washbasins

SKU Code

116.236.21.1

Specification data - Washbasin taps

Form

Without mixer; battery operation.

Materials

-

Body

Brass.

Finish and colour

Bright chrome-plated.

Flow rate (maximum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Water supply temperature (maximum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Integral accessories

Washbasin tap.
IR sensor and connection hose.
Control electronics.
Battery compartment with batteries.
Check valve.

Guidance for specification option:

Consult manufacturer for full details.

Accessories

Geberit Service Handy.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Operating temperature

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Ingress protection

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Voltage

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Operating pressure (maximum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Dimensions

Tap (visible): 340 x 245 x 99 mm.

Sustainability data

Material

Brass
