Geberit Type 185 washbasin tap, generator operation - Washbasin taps

Verified by manufacturer 6 days ago

116.335.21.1 bright chrome-plated, without mixer

Geberit Sales Ltd Variant:

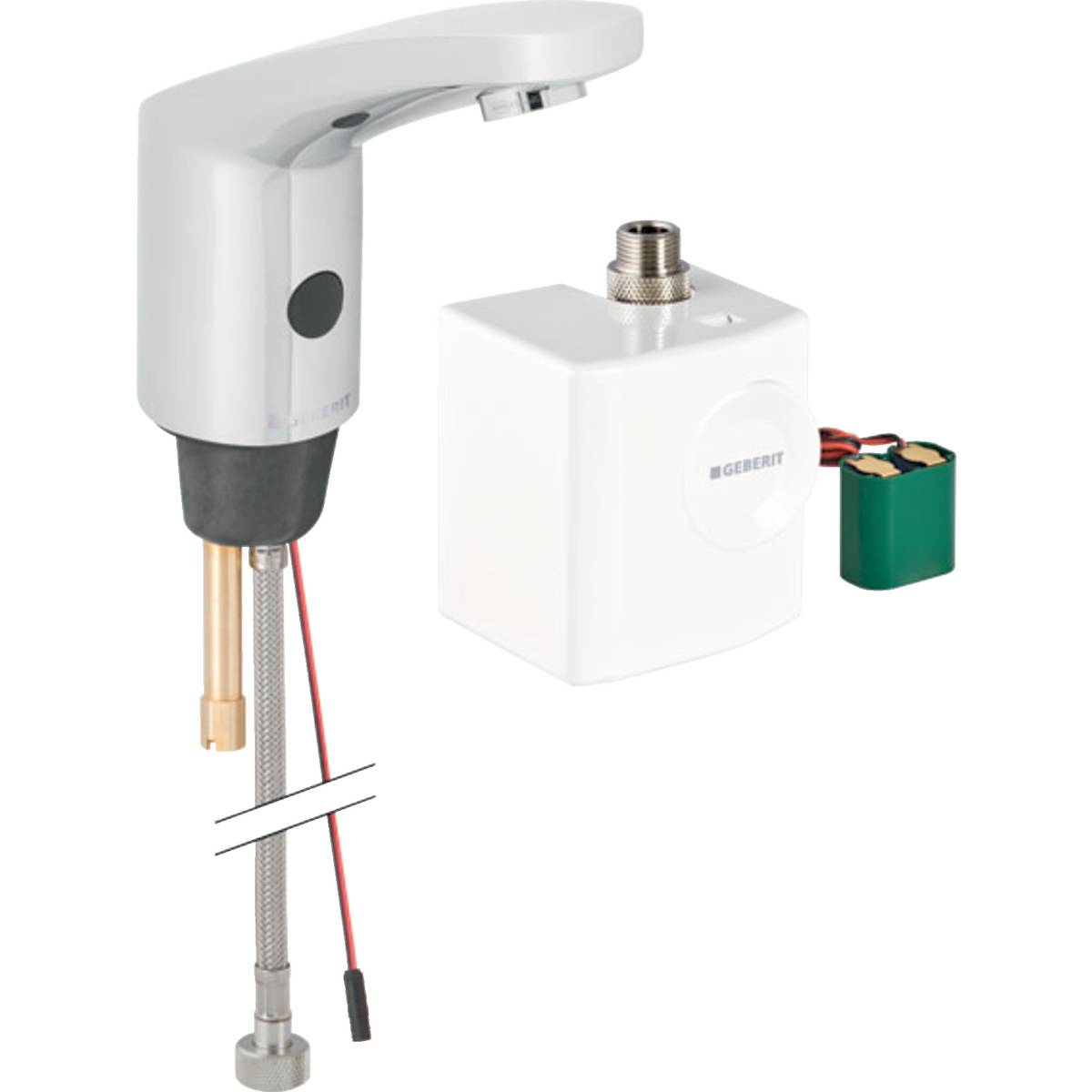

Chrome-plated washbasin tap, generator operation.

Jump to:
+44 (0)1926 516800 Website

Application

  • For extracting tap water.
  • For public and semipublic areas.
  • For installation in washbasins or washtops.
  • For connecting cold and hot water (only for model with mixer).
  • For connecting cold or mixed water (only for model without mixer).
  • For use with stainless steel bowls.
  • For a flow rate of greater than 3 litres per minute.
  • Model without mixer suitable for combination with continuous flow heater, see manufacturer's technical data sheet "Washbasin taps with continuous flow heaters.

Description

Chrome-plated washbasin tap, generator operation.

Features and benefits:

  • Two models: without mixer or with below-desk mixer.
  • Automatic flush actuation.
  • Infrared user detection.
  • Self-adjusting IR sensor.
  • Vandal-resistant.
  • Volume flow control via tap aerator.
  • Temperature presetting via below-desk mixer (only for models with mixer).
  • Not possible to set just hot water or just cold water (only for model with mixer).
  • Power supply from generator and rechargeable battery.
  • Self-sustaining power supply.
  • Warning when rechargeable battery's state of charge is low.
  • Water saving due to quick-response two-beam scanning technology.
  • Functions can be set and queried with the Geberit Service Handy.
  • Device settings and operation with mobile device via integrated Bluetooth® interface.
  • Compatible with Geberit Control App.
  • Wirelessly connectable with Geberit Gateway via Bluetooth®.
  • Compatible with Geberit Connect.
  • Water saver program can be set.
  • Interval flush program can be set.
  • Continuous flush can be set individually.
  • Flush actuation can be deactivated.
  • With integrated check valve.
  • When used at least 50 times per day on average for a duration of 4 s each, the washbasin tap works in a self-sustaining manner.

General information

Color

Silver

Finish

Chrome

Gloss

Material

Brass

Shape

Other

Length

339 mm

340 mm

Manufacturer guidance

Tap only.

Width

96 mm

99 mm

Height

245 mm

250 mm

Manufacturer guidance

Tap only.

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/341 Vanity tops with formed washbasins

N13/335 Washbasins

N13/30 Washbasins

SKU Code

116.335.21.1

Specification data - Washbasin taps

Form

Without mixer; generator operation.

Materials

-

Body

Brass.

Finish and colour

Bright chrome-plated.

Flow rate (maximum)

>3 L/min.

Guidance for specification option:

Consult manufacturer for details.

Water supply temperature (maximum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Integral accessories

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for full details.

Accessories

Geberit Service Handy.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Operating temperature

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Ingress protection

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Voltage

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Operating pressure (maximum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Dimensions

Tap (visible): 339 x 250 x 96 mm.

Sustainability data

Material

Brass
