Geberit Smyle urinal, inlet from the rear, outlet to the rear - Urinal
Verified by manufacturer 3 days ago

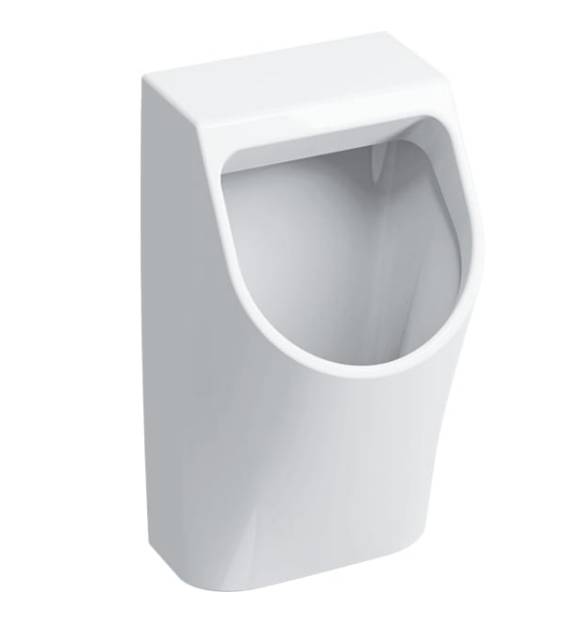

Geberit Smyle urinal.
Application
- For operating with automatic, water-saving flush.
- For operation with manual or automatic flush actuation.
- For concealed urinal flush controls.
- For concealed urinal flush controls, hidden.
- For exposed urinal flush controls, hidden.
Description
Geberit Smyle urinal, inlet from the rear, outlet to the rear.
Features and benefits:
- Wall-hung.
- With flush rim.
- Hidden trap.
- Fulfils requirements in accordance with EN 13407.
General information
Color | White |
Finish | Smooth |
Material | Vitreous china |
Shape | Other |
Length | 300 mm |
Width | 325 mm |
Height | 580 mm |
Uniclass | |
CAWS | N13/315 Urinals and auto-flushing cisterns N13/15 Urinals and cisterns |
SKU Code | 500.254.01.1 |
Specification data - Wall-hung urinals
Standards | To BS EN 13407. |
Urinal type | III. |
Flushing device | B. |
Form | Bowl. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, overflow and waste holes | |
Water supply | Rear supply hole. |
Overflow | None. |
Waste | Rear outlet. |
Integral accessories | Fastening material for urinal. |
Accessories | Not required. Geberit urinal trap d40, horizontal outlet. Geberit urinal trap, horizontal outlet. |
Flush volume | 1 L. |
Sustainability data
Material | Vitreous china |
