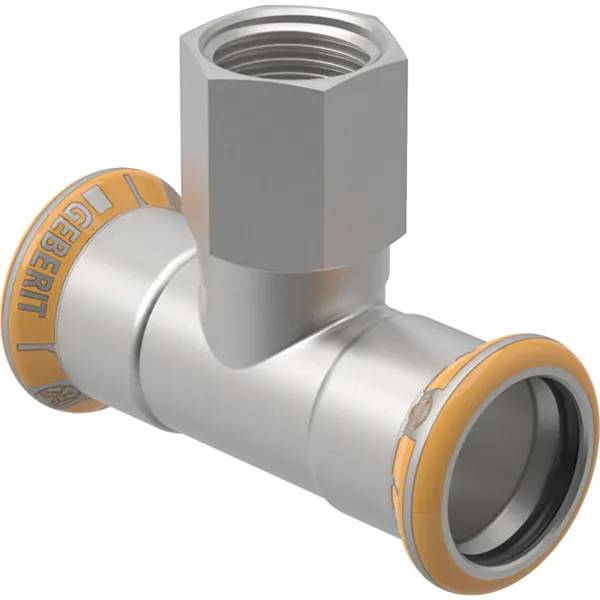

Geberit Mapress Therm T-piece with female thread
Verified by manufacturer today
Geberit Mapress Therm T-piece with female thread.
Application
- Air conditioning cold water without antifreeze agent.
- Air conditioning cold water with antifreeze agent.
- Cooling and heating water without antifreeze agent.
- Cooling and heating water with antifreeze agent.
- District heating water ≤120°C.
- Sprinklers (wet).
- Extinguishing water (wet).
- Compressed air (oil purity class 0–3).
- Negative pressure.
- Inert gases e.g. nitrogen.
- Technical building systems and industry.
Description
Geberit Mapress Therm T-piece with female thread.
Features and benefits:
- Not admissible for drinking water installations.
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Other |
Length | 64 mm 68 mm 74 mm 84 mm 100 mm |
Width | 15 mm 18 mm 22 mm 28 mm 35 mm Manufacturer guidancePipe diameter. |
Uniclass | |
CAWS | S90/530 Stainless steel pipework |
SKU Code | 41304, 41305, 41306, 41307, 41308, 41309, 41311, 41312, 41313, 41314, 41316, 41317, 41318, 41321, 41322, 41324, 41326, 41331, 41334, 41336, 41350, 41360 |
Specification data - Stainless steel pipe fittings
Environmental performance | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Material grade | Manufacturer's standard. |
Pipe diameter | DN 12/15. Guidance for specification option: Article number: 41304. Run diameter: 15 mm; branch diameter: ½". Length: 64 mm. DN 15. Guidance for specification option: Article number: 41305. Run diameter: 18 mm; branch diameter: ½". Length: 68 mm. DN 15/20. Guidance for specification option: Article number: 41306. Run diameter: 18 mm; branch diameter: ¾". Length: 68 mm. DN 20/15. Guidance for specification option: Article number: 41307. Run diameter: 22 mm; branch diameter: ½". Length: 74 mm. DN 20. Guidance for specification option: Article number: 41308. Run diameter: 22 mm; branch diameter: ¾". Length: 74 mm. Manufacturer guidanceConsult manufacturer's literature for full details. |
Sustainability data
Material | Stainless steel |
