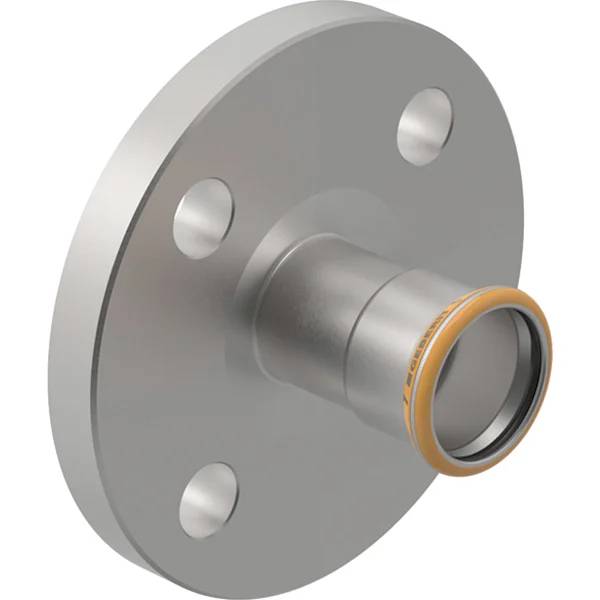

Geberit Mapress Therm flange PN 6, with pressing socket
Verified by manufacturer today
Geberit Mapress Therm flange PN 6, with pressing socket.
Application
- Air conditioning cold water without antifreeze agent.
- Air conditioning cold water with antifreeze agent.
- Cooling and heating water without antifreeze agent.
- Cooling and heating water with antifreeze agent.
- District heating water ≤120°C.
- Sprinklers (wet).
- Compressed air (oil purity class 0–3).
- Negative pressure.
- Inert gases e.g. nitrogen.
- Technical building systems and industry.
Description
Geberit Mapress Therm flange PN 6, with pressing socket.
Features and benefits:
- Not admissible for drinking water installations.
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
- Design B1 (raised sealing strip with standard sealing strip), EN 1092-1.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Circle |
Length | 68 mm 75 mm 83 mm 114 mm 121 mm |
Width | 120 mm 130 mm 140 mm 160 mm 190 mm Manufacturer guidanceOverall (outer) diameter. |
Height | 120 mm 130 mm 140 mm 160 mm 190 mm Manufacturer guidanceOverall (outer) diameter. |
Uniclass | |
CAWS | S90/530 Stainless steel pipework |
SKU Code | 43746, 43747, 43748, 43749, 43750, 43751 |
Specification data - Stainless steel pipe fittings
Standards | |
Flanged | To BS EN 1092-1. |
Environmental performance | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Material grade | Manufacturer's standard. |
Pipe diameter | DN 32. Guidance for specification option: Article number: 43746. Length: 68 mm. DN 40. Guidance for specification option: Article number: 43747. Length: 75 mm. DN 50. Guidance for specification option: Article number: 43748. Length: 83 mm. DN 65. Guidance for specification option: Article number: 43749. Length: 114 mm. DN 80. Guidance for specification option: Article number: 43750. Length: 121 mm. Manufacturer guidanceConsult manufacturer's literature for full details. |
Accessories | None. Geberit bolt set for flange connection. Guidance for specification option: Made of CrNi steel. Geberit flange gasket. Guidance for specification option: Fibre composite material PN 6. |
Sustainability data
Material | Stainless steel |
