Geberit Mapress Stainless Steel corner elbow 90°
Verified by manufacturer today

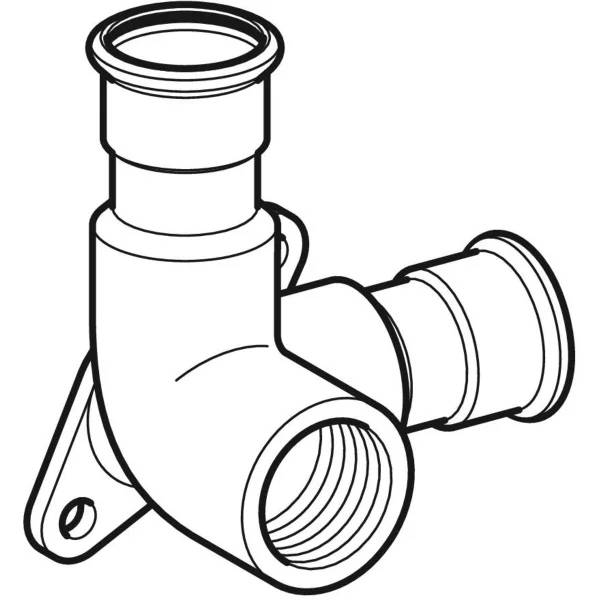

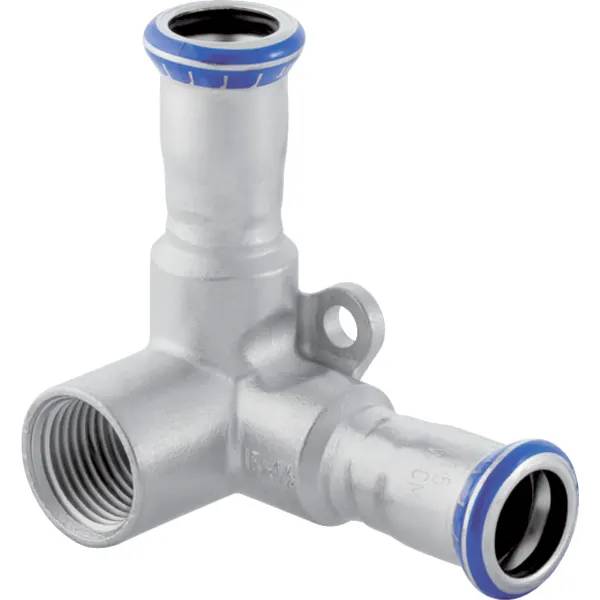

Geberit Mapress stainless steel corner elbow, 90°.
Application
- For cold and hot potable water.
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For district heating water ≤120°C.
- For saturated steam ≤120°C.
- For service water and process water.
- For treated water.
- For rainwater with a pH value of >6.0.
- For grey and black water with pH value >6.0.
- For extinguishing water (wet).
- For extinguishing water (wet/dry, dry).
- For sprinklers (wet).
- For chemicals and technical liquids.
- For compressed air (oil purity class 0–3).
- For negative pressure.
- For inert gases (e.g. nitrogen).
- For industrial gases (e.g. acetylene, shielding gases).
- For technical building systems, industry and shipbuilding.
Description
Geberit Mapress stainless steel corner elbow, 90°.
Features and benefits:
- Pressing indicator.
- Leaky if unpressed.
- Two fastening points.
- Seal ring made of CIIR, black.
- Pressing socket with transparent protection plug.
- Material: CrNiMo steel 1.4401 (to EN 10088).
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Other |
Length | 43 mm 62 mm |
Width | 15 mm 18 mm 22 mm Manufacturer guidancePipe diameter. |
Height | 60 mm |
Uniclass | |
CAWS | S90/530 Stainless steel pipework |
SKU Code | 33503, 33504, 33505, 33510, 33520 |
Specification data - Stainless steel pipe fittings
Environmental performance | |
Embodied carbon | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Material grade | CrNiMo steel 1.4401 (to EN 10088). |
Pipe diameter | DN 12/15 (43 mm long). Guidance for specification option: Article number: 33503. Run diameter: 15 mm; branch diameter: ½". DN 15 (43 mm long). Guidance for specification option: Article number: 33504. Run diameter: 18 mm; branch diameter: ½". DN 20/15 (43 mm long). Guidance for specification option: Article number: 33505. Run diameter: 22 mm; branch diameter: ½". DN 15 (62 mm long). Guidance for specification option: Article number: 33510. Run diameter: 18 mm; branch diameter: ½". DN 20/15 (62 mm long). Guidance for specification option: Article number: 33520. Run diameter: 22 mm; branch diameter: ½". Manufacturer guidanceConsult manufacturer's literature for full details. |
Sustainability data
Material | Stainless steel |
