Geberit Mapress CuNiFe Flange PN 10/16, With Pressing Socket
Verified by manufacturer 2 days ago
68692 - DN 15/12 | ⌀95 mm | 61 mm Length
68692 - DN 15/12 | ⌀95 mm | 61 mm Length

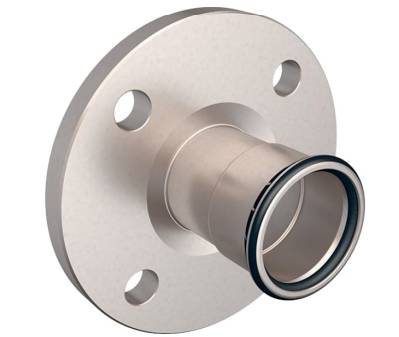

Geberit Mapress CuNiFe flange PN 10/16, with pressing socket.
Application
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For service water and process water.
- For grey and black water with pH value >6.0.
- For seawater.
- For extinguishing water (wet).
- For sprinklers (wet).
- For compressed air (oil purity class 0–3).
- For inert gases (e.g. nitrogen).
- For industry and shipbuilding.
- For negative pressure.
Description
Geberit Mapress CuNiFe flange PN 10/16, with pressing socket.
Features and benefits:
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
- Pressing socket with transparent protection plug.
- Design B1 (raised sealing strip with standard sealing strip), EN 1092-3.
General information
Color | Copper |
Material | Copper |
Shape | Other |
Length | 61 mm 65 mm 69 mm 72 mm 79 mm |
Width | 95 mm 105 mm 115 mm 140 mm 150 mm |
Uniclass |
SKU Code | 68692 |
Specification data - Copper-nickel alloy pipe fittings
Classification data | |
Product reference | Geberit Mapress CuNiFe Flange PN 10/16, With Pressing Socket. |
Accessories | Seal ring, CIIR, black. Geberit bolt set for flange connection, made of CrNi steel. Geberit flange gasket, fibre composite material PN 6. |
Material grade | CuNi10Fe1.6Mn (no. 2.1972.11). |
Length | 61 mm. |
Diameter | DN 12/15. |
Diameter/ Section | 95 mm. |
Sustainability data
Material | Copper |
