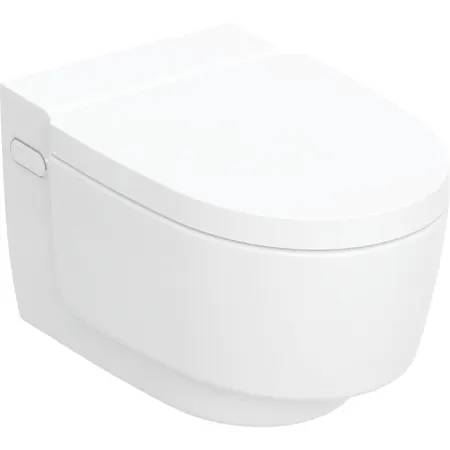

Geberit Aquaclean Mera Classic WC Complete Solution, Wall-Hung WC

Name: Geberit Aquaclean Mera Classic WC Complete Solution, Wall-Hung WC
Brand: Geberit Sales Ltd
SKU: cRKmmaAENLMwpvBkhBckTV

Verified by manufacturer 8 days ago

Geberit AquaClean Mera Classic WC complete solution, wall-hung WC.

Jump to:

Application

For convenient and odourless toilet use.

For gently cleaning the anal and vaginal areas with water.

Geberit AquaClean Mera Classic WC complete solution, wall-hung WC.

Features and benefits:

Hybrid hot water system with continuous flow heater and storage water heater
Anal shower with double-nozzle WhirlSpray shower technology
Separate Lady shower nozzle in protected park position
Adjustable shower water temperature
Spray intensity can be set to five different levels
Spray arm can be set to five different positions
Adjustable oscillating spray (automatic forward and reverse motion of the spray arm)
Automatic pre- and postrinsing of the spray nozzle with fresh water
Descaling programme
Rimless WC ceramic appliance featuring TurboFlush flush technology
Washdown WC with special glaze KeraTect
User detection
Odour extraction with ceramic honey comb filter can be activated
Odour extraction unit with run-on function
Dryer can be activated
Dryer air intensity can be set to 5 positions
Dryer arm can be extended
Adjustable dryer temperature
WC seat ring and WC lid with soft-closing mechanism
WC lid with SoftOpening
Functions and settings via remote control
Three user profiles can be programmed
Compatible with Geberit Home App
Water supply connection on the left, hidden behind the WC ceramic
Mains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramic
External water supply connection on the left possible with accessories
External mains connection with power outlet on the right possible
Premounted sound insulation
Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077.

Package includes:

Water supply connection set for Sigma and Omega concealed cisterns 12 cm, installation height 112 cm.
Female socket for mains connection.
Spray shield.
Descaling agent, 125 ml.
Cleaning set.
Connection set for WC, ø90 mm.
Remote control with wall-mounted case and battery CR2032.
Fastening material.

Technical data:

Uniclass	Pr_40_20_93_99 WC, wash and dry combined unitsPrimary
CAWS	N13/304 Wash/ dry WCs

Approvals	Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077.
Form	Wall-mounted, washdown.
Materials	-
Finish and colour	146.200.11.1 - White. 146.200.21.1 – Gloss chrome-plated.
Sizes	-
Pan height	340 mm.
Integral accessories	Wall-mounted control panel for Geberit AquaClean. Interface module 12 V for Geberit AquaClean Mera/Sela Wall-mounted control panel, touchless, for Geberit AquaClean Interface module 4.1 V for Geberit AquaClean Mera / Sela

Ingress protection	IPX4.
Nominal voltage	230 V a.c.
Frequency	50 Hz.
Power consumption	2 kW. Standby: 0.5 W (maximum).
Pressure	Flow pressure: 0.5–10 bar.
Operating temperature	5–40°C. Water temperature, adjustment range: 34–40°C.
Flowrate	0.03 L/s.
Protection class	I.
