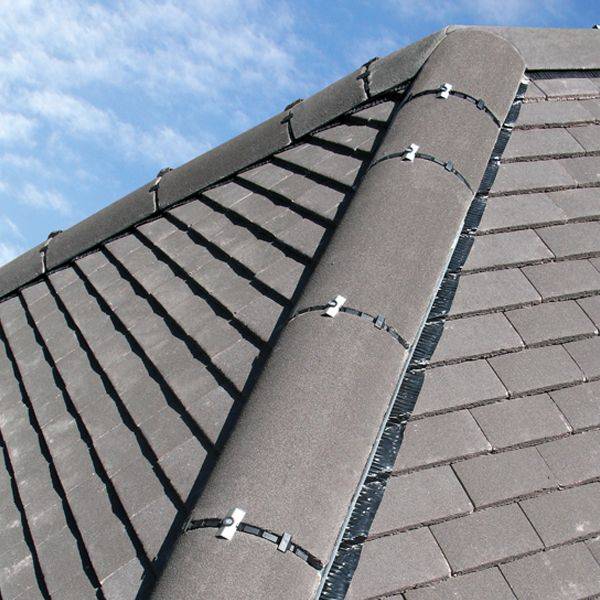

The GDRH Dry Fix Roll-Out Hip is a mechanically fitted system that securely fixes the hip tiles onto a roof, protecting them from wind uplift and rain penetration without the need for mortar and pointing. The system can also provide 5000 mm²/m ventilation to the roof void through the vent roll, the equivalent of a continuous 5 mm gap.


Features and benefits:

  • Compatible with most makes of concrete half-round and angled hip tiles.
  • Can be fitted to the hip of most roof pitches (pitches must be within tile manufacturer's recommendations for the tile type being used).
  • The system is compatible with most slate, concrete flat and profiled tiles.
  • No need for mortar, the system can be installed in all weathers.
  • Can be used with Manthorpe’s Roll-Out Dry Ridge System.

General information

Color

Black

Dark Brown

Terracotta

Uniclass

Pr_35_90_93_28 Dry fixing hipsPrimary

Specification data - Dry fixing hips

Accessories

None.

GDRH-ST Hip Support Tray.

Guidance for specification option:

  • The Hip Support Tray is fitted above the Vent Roll when installing the Manthorpe Dry Hip System to provide a straight and level platform to support the tiles up the hip of the roof.
  • This is particularly necessary when using profiled or deep flat tiles.

GDRR-RR Vent Roll.

Guidance for specification option:

  • Supplied in lengths of 6 m, the vent roll is placed along the length of the hip prior to the hip tiles being installed.
  • The roll is made up of a vapour permeable membrane down the centre, with a corrugated acrylic coated aluminium strip down each edge.
  • The malleability of the aluminium allows the roll to be shaped to the profile of the roof tiles and is secured in place with a butyl strip already attached to the underside.
  • The punched vapour permeable membrane will provide ventilation to the roof void of 5000 mm²/m whilst avoiding the ingress of wind driven rain and the entry of large insects.

GDRR-RU Ridge Union.

Guidance for specification option:

  • The Ridge Union sits in the gaps between each of the ridge tiles, holding them in place.
  • The ridge union body slides onto the end of the ridge tile and is flexible so that it bends to the shape of the tile.

Contractor's choice.

Product Reference

GDRH Dry Fix Roll-Out Hip

Roll colour

Black.

Dark Brown.

Terracotta.

Free airflow

5000 mm²/m.
