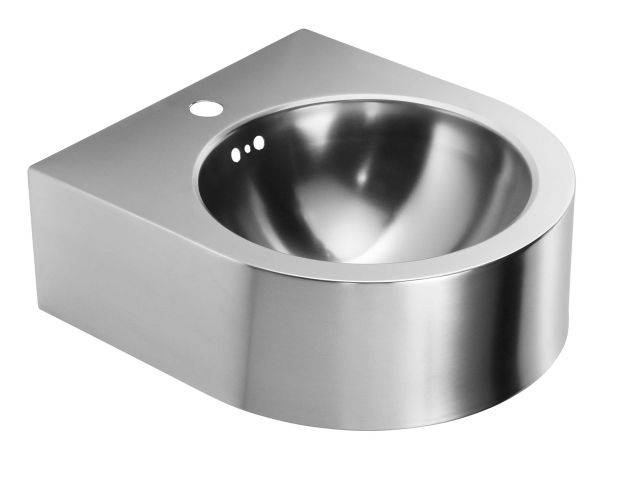

GB4000 Wall Hung Wash Basin
Description

Wall hung stainless steel wash basin designed for applications including public, commercial, industrial, domestic and anti-vandal environments. Low maintenance, hygienic and very durable.

General information

Finish

Brushed satin

Size

300 mm diameter bowl. 380 mm wide x 430 mm deep x 150 mm high overall

Material

[Material, Acid resisting stainless steel to EN 1.4401]

Satin finish stainless steel to EN 1.4301

Uniclass 2015

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Wall-hung washbasins

Product Reference

GB4000 Wall hung wash basin

Finish

Brushed satin

Tap/ Chainstay/ Over holes

No tap or chainstay, with overflow

With overflow, 1 taphole

With overflow, 2 tapholes

Standard product features

Size:

  • 300 mm diameter bowl. 380 mm wide x 430 mm deep x 150 mm high overall.

Fixings:

  • Concealed integral.

Outlets:

  • 32 mm diameter outlet, overflow and captive plug.

Material:

  • Satin finish stainless steel to EN 1.4301.

Tap/ Chainstay/ Overflow holes:

  • No tap or chainstay, with overflow.

Wastes:

  • 32 mm captive plug.

Product Options

Material:

Acid resisting stainless steel to EN 1.4401.

Tap/ Chainstay/ Overflow holes:

  • With overflow, 1 taphole.
  • With overflow, 2 tapholes.

Literature
Similar products from Anderson, GEC Ltd
