Description

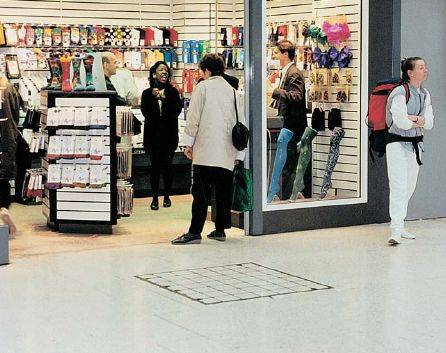

Single access cover and frame for use in the following areas, offering different loading groups.

Specification data
Product Reference

Gatic 2000 Single Covers and Frames

Loading

B125

3 tonne wheel load.

C250

5 tonne wheel load.

D400

11.5 tonne wheel load.

E600

20 tonne slow moving wheel load.

F900

Wheel loads in excess of 20 tonne.

Size -
Pit opening (l x s)

600 x 1050 mm

600 x 1200 mm

600 x 450 mm

600 x 600 mm

700 x 700 mm

Solid top cover only.

750 x 1050 mm

750 x 1200 mm

750 x 300 mm

750 x 450 mm

750 x 600 mm

750 x 750 mm

900 x 600 mm

900 x 750 mm

900 x 900 mm

1000 x 1050 mm

Cover

Type DLF

Recessed cover for concrete filling.

Type DM

Recessed cover for concrete filling.

Type L

Recessed cover for concrete filling.

Type M

Recessed cover for concrete filling.

Type MHS

Solid top cover.

Plug -
Selection

Not required

Required

Size

300 x 300 mm (maximum).

Standard product features

Material:

  • Ductile Iron components to BS 2789 / ISO 1083.
  • Steel components to BS EN 10083 / ISO 630.

Product Options

Loadings:

– B125, 3 tonne wheel load:

For use in footways, pedestrian areas, car parks, driveways and internal floors.

– C250, 5 tonne wheel load:

For use in roads carrying relatively slow moving traffic, for example, minor residential roads, cul-de-sacs and yards.

– D400, 11.5 tonne wheel load:

For use in power stations, carriageways, hard shoulders and parking areas.

– E600: 20 tonne slow moving wheel load:

For areas imposing high wheel loads, some aircraft pavements, dockyards and other areas where abnormal vehicles may be encountered.

– F900: Wheel loads in excess of 20 tonne:

For areas imposing particularly high wheel loads, aircraft pavements, taxiways, container ports and dockyards.

Cover:

Not all covers are available in all sizes; please refer to Gatic 2000 technical literature for exact details.

Plug:

Can be supplied with a central removable plug.
