Application

Suitable for use in the following areas:

  • Urban public places.
  • Parking areas.

Description

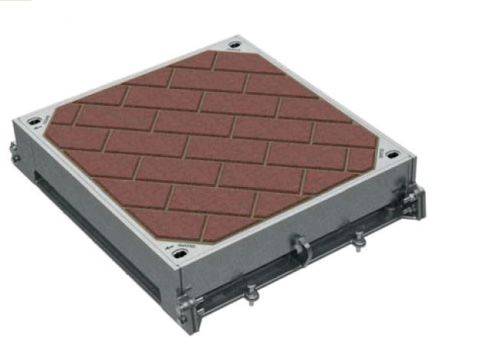

High performance single, duct and multi span access covers and frames for use in paved areas where an aesthetic finish is required in environments up to D400 loading. All variants are suitable for 11.5 t slow moving pneumatic wheel loads, with a cover test load of 400 kN.

Features and benefits:

  • Recessed covers create an aesthetic paviour infill.
  • Non-rocking, under slow moving traffic.
  • A film of graphite grease between the contact faces of the unit provides a gas and airtight seal and a watertight joint under rainwater conditions.
  • Secure and vandal resistant. The covers are lockable and cannot be removed without the correct lifting key, making unauthorized access virtually impossible.
  • Ventilated covers are available - consult manufacturer for details.
  • Pave cover keyways are closed and fitted with plastic plugs to prevent dirt ingress.
  • The covers will withstand test load and maximum permanent set criteria specified in BS EN 124, up to D400.
  • The clear opening width between the supporting frames is at least 7 mm greater than the pit/ chamber design to allow for minor deviations in pit construction dimensions.
  • Removable support beams for ease of access into the chamber area.

Applications:

Suitable for use in the following areas:

  • Urban public places.
  • Parking areas.

General information
Finish

Covers, removable supporting steelwork and side frames are supplied with a galvanized finish

Material

Ductile iron (to BS EN 1563) and structural steel sections (to BS 4-1)

Uniclass 2015 Raised access floor panels (Pr_25_71_42_70)
Specification data
Product Reference

Gatic Pave Access Covers

Type

Duct and Trench Covers and Frames

Multispan Covers and Frames

Single Covers and Frames

Pit opening -
Length

600–3900 mm. Consult manufacturer for your chosen type and insert requirements.

Span

600–4470 mm. Consult manufacturer for your chosen type and insert requirements.

Beam size

The required beam size is dependent on the pit clear opening. Consult manufacturer and insert requirements.

Accessories

None

Locking bolts

For additional security.

Mechanical lifting key

Recommended due to the access covers weight.

Standard product features

Material:

Ductile iron (to BS EN 1563) and structural steel sections (to BS 4-1).

Finish:

Covers, removable supporting steelwork and side frames are supplied with a galvanized finish.
